Four Missing Bolts, One Hole at 16,000 Feet

TLDR

On January 5, 2024, a door plug separated from Alaska Airlines Flight 1282 at 16,000 feet, punching a hole in the fuselage of a Boeing 737 MAX 9. The NTSB published its final investigation report in June 2025, confirming the cause: four retention bolts were removed during a manufacturing rework at Boeing's Renton, Washington plant and were never put back. No wrong material. No wrong grade. Just four bolts that should have been there, confirmed by engineers, required by design, and completely absent at takeoff. (Source: NTSB Accident Report AIR-25-04, ntsb.gov)

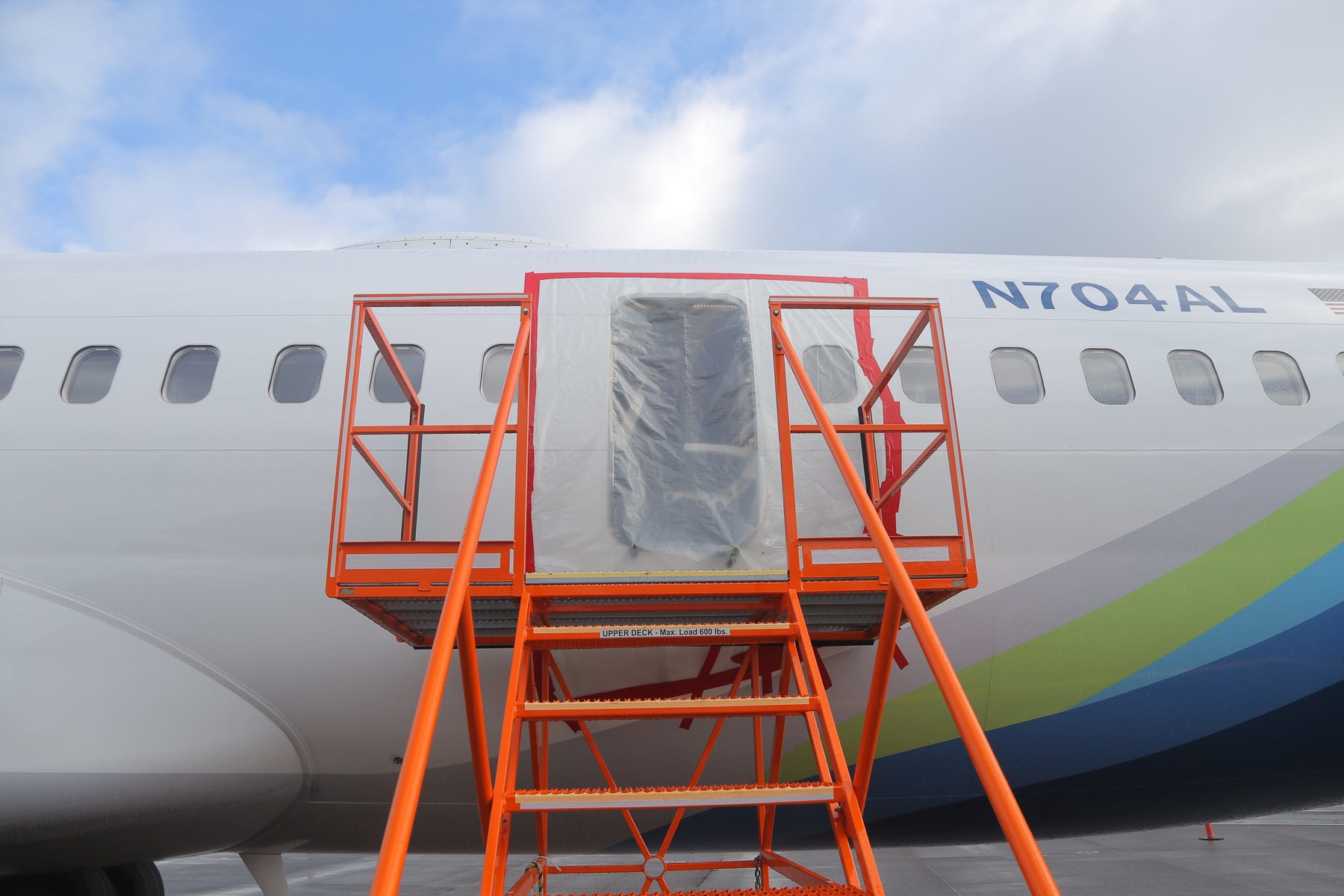

On a clear morning in Portland, Oregon, 177 people boarded Alaska Airlines Flight 1282 for a short domestic flight to Ontario, California. About fifteen minutes after takeoff, the plane was climbing through roughly 16,000 feet when the left mid-exit door plug separated from the fuselage.

A gaping hole appeared at row 26. A teenager's shirt got sucked toward the opening. A passenger's iPhone disappeared into the sky. A flight attendant slammed into the ceiling. The crew executed emergency procedures, the plane returned to Portland, and everyone survived. Three passengers had minor injuries.

No one died. But it was, by any honest accounting, extraordinarily lucky.

The cause was four bolts.

What Those Four Bolts Were Supposed to Do

The Boeing 737 MAX 9 uses mid-exit door plugs to seal off door openings that are not needed on lower-passenger-count configurations. Each plug sits in a set of guide tracks and is held in place at the top by four guide bolts that prevent the plug from moving upward and disengaging from the track.

Those bolts act as physical constraints. The door plug does not need them to stay closed at ground level. Gravity and atmospheric pressure keep it seated just fine on the tarmac. At altitude, however, cabin pressure pushes outward against the fuselage skin. In that environment, the guide bolts are the only thing preventing the plug from riding upward off its track and separating from the aircraft.

No guide bolts, no constraint. At the right pressure differential, the plug lifts off its track and goes.

What Went Wrong at the Factory

In November 2023, Boeing technicians at the Renton facility removed the door plug to address a separate defect: a pressurization issue caused by improperly installed rivets near the plug opening. To fix the rivets, the plug had to come out. That meant pulling the four guide bolts.

The rework was completed. The rivets were corrected. The plug was put back.

The four guide bolts were not.

According to the NTSB's final report, Boeing's manufacturing process required a removal record any time the door plug was taken out, specifically so that the reinstallation team would know all hardware needed to go back in. No removal record was created for this procedure. The reinstallation team had no indication the guide bolts had ever come out. The plane passed inspection, was delivered to Alaska Airlines, and flew approximately 145 flights before the plug separated.

The Lesson That Goes Beyond Aerospace

This case is worth examining carefully because it captures a failure pattern that appears across industries far removed from aviation: the fastener that looks optional because nothing is visibly wrong without it.

The four guide bolts on that door plug did not carry a load at ground level. They were not visible to passengers. They had no function that would show up in a routine pre-flight check. They were the kind of small, unremarkable hardware that technicians touch dozens of times in a workday without thinking about what the absence of any single one might mean.

And yet their presence was the only thing standing between a normal flight and a blowout.

That dynamic plays out constantly in industrial, fleet, and construction contexts. A connecting rod bolt on a marine diesel engine. A flange bolt on a pressurized fuel line. A frame mounting bolt on a commercial vehicle. Each one looks routine. Each one has a specific calculated role in the load path of its assembly. Miss the torque spec, reduce the count, or skip the documentation check, and that role disappears.

Four Principles Every Maintenance Team Should Apply

The Alaska Airlines case reinforces four fastener practices that apply across virtually every mechanical assembly environment.

Every fastener has a specific role. Bolts are engineered into assemblies for defined reasons: shear loads, tensile loads, vibration resistance, or constraint. Change the count or position, and the load path changes with it.

Grade and torque are inseparable. The right bolt at the wrong torque still fails. The NTSB documented this in 2022 with the Washington State Ferry Wenatchee, where a single undertorqued connecting rod bolt during a scheduled engine overhaul caused $3.8 million in damage and an engine room fire. The fastener was the correct part. The torque was not the correct value. The result was catastrophic. (Source: NTSB Marine Investigation Report 22/06, ntsb.gov)

Quantity is a specification, not a suggestion. Four bolts in a joint means four bolts. Engineers calculate load distribution across the full fastener count. Reduce the count by one, and each remaining fastener carries a share of a load it was not designed to handle on its own.

Documentation closes the loop. The Boeing failure was not just a maintenance error. It was a documentation failure that allowed a maintenance error to go undetected across 145 flights. A torque sign-off, a parts checklist, or a step-by-step inspection record is what catches missing fasteners before they become missing constraints at altitude.

The Right Fastener Means the Complete Job

The phrase "right fastener for the job" most often calls to mind material and grade selection: stainless instead of carbon steel for a coastal environment, Grade 8 instead of Grade 5 for a high-load joint. Those choices matter enormously, and they save structures and machines every day.

But the Alaska Airlines case extends that principle. The right fastener for the job also means the right number, installed in the right location, torqued to the manufacturer's specification, and documented so someone can verify the work was completed. Four bolts means four bolts. Not because a checklist says so, but because those four bolts were the only thing standing between a routine flight and a hole in the sky, and no one knew it until they were gone.
