What the Hyatt Regency Collapse Still Teaches Us About Fastener Selection

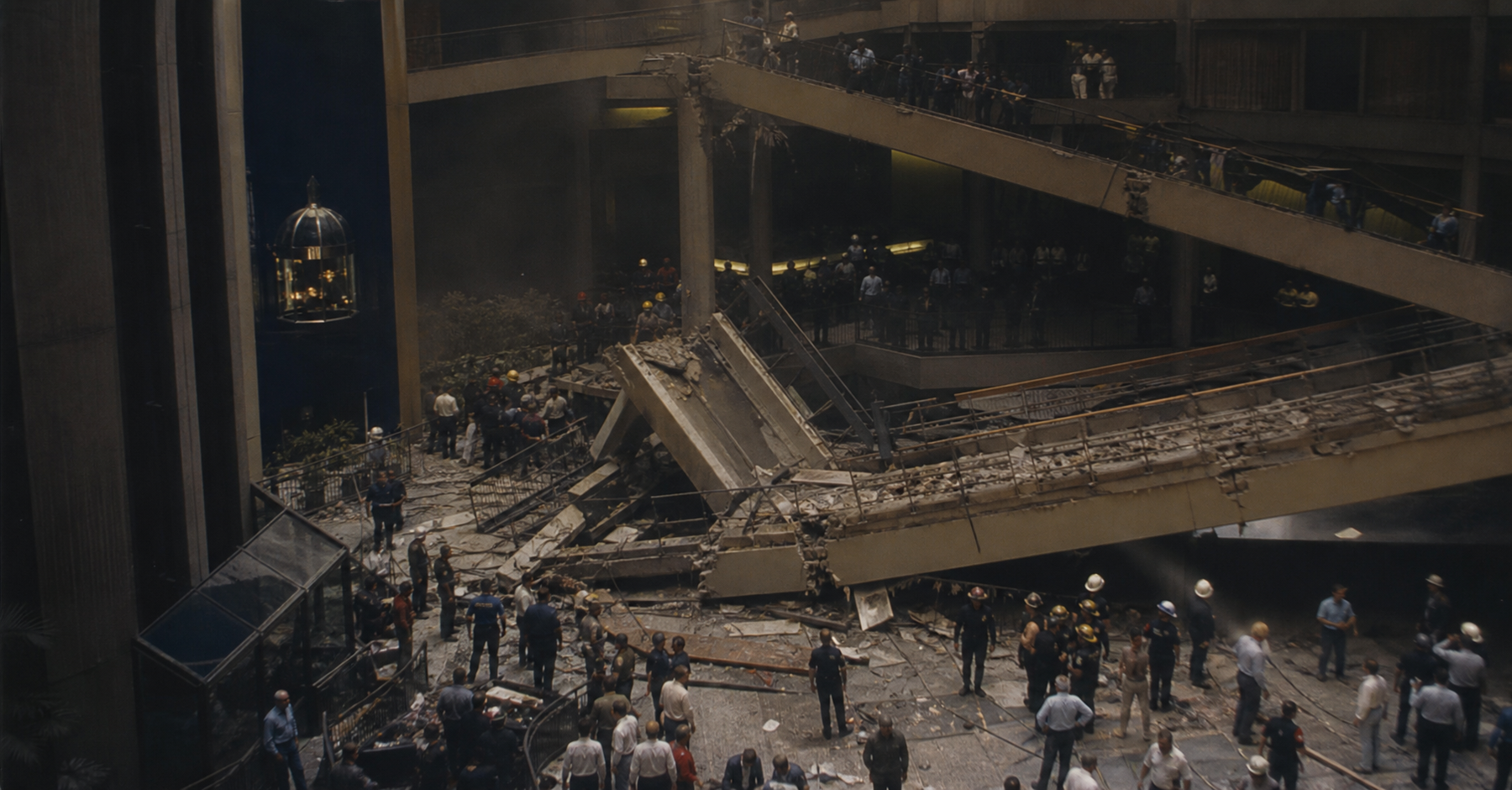

It was supposed to be a fun Friday night. On July 17, 1981, hundreds of people filled the atrium lobby of the Hyatt Regency Hotel in Kansas City, Missouri for a tea-dance party. The four-story atrium was one of the building's crown features — an open, dramatic space with elevated walkways on the second and fourth floors where guests could look down at the crowd below.

At 7:05 PM, both walkways collapsed.

The fourth-floor walkway fell onto the second-floor walkway, and both came crashing down onto the crowded lobby. 114 people died. More than 200 were injured. It remains one of the deadliest structural failures in U.S. history — and it traces back to a single design change involving how two threaded rods were connected.

What Actually Went Wrong

The original design called for a single continuous threaded rod running from the ceiling, through the fourth-floor walkway, all the way down to the second-floor walkway. Under this design, each walkway would be supported by its own section of rod, bearing only the load of that one walkway.

During fabrication, the contractor proposed a change: replace the single long rod with two shorter rods — one from the ceiling to the fourth-floor walkway box beam, and a second rod from the fourth-floor beam down to the second-floor walkway. It seemed like a minor simplification. Easier to fabricate, easier to install.

The problem was load transfer.

Under the original design, the fourth-floor connection only had to support the weight of the fourth-floor walkway. Under the revised design, the fourth-floor connection had to support both walkways — because the second-floor walkway now hung from the fourth-floor beam, not directly from the ceiling.

The box-beam connection at the fourth floor — the nut, washer, and rod assembly holding the whole stack together — was never designed or specified to carry that doubled load. When the atrium filled with people, the connection was loaded beyond its capacity. The nut pulled through the box beam. Both walkways came down.

The National Bureau of Standards investigation concluded that even the original design was under-engineered for the actual load. But the field change made it far worse — and no one recalculated the load on the modified connection before approving it.

Source: National Bureau of Standards, "Investigation of the Kansas City Hyatt Regency Walkways Collapse," 1982

The Fastener Lesson

The fastener itself — a threaded hanger rod with a nut and washer — wasn't defective. The wrong was in how it was applied. The load it was asked to carry after the design change was never matched to the capacity of the connection.

This is the most common and most dangerous fastener mistake: changing a connection detail without recalculating what the new configuration actually has to hold.

In this case, the failure points were:

The nut-and-washer connection was undersized for the actual load. The box beam channel through which the rod passed was not strong enough to transfer the bearing load from both walkways. A heavier washer plate, a different connection method, or a higher-grade rod assembly could have changed the outcome — but only if someone had done the load math first.

The design change doubled the load without anyone rechecking the specs. This is a process failure as much as a fastener failure. An approved structural change that affects load paths must go back through engineering review. The nut and rod don't know that someone changed the drawing.

Grade and capacity assumptions were never verified against the new reality. The rod, nut, and washer assembly had ratings. Those ratings assumed a certain load. When the load changed, nobody verified that the hardware still met spec.

How to Think About This on Your Own Projects

The Hyatt Regency collapse happened at architectural scale, but the same failure logic shows up on smaller jobs every day.

A design change is a load change. Any time you modify how a connection is made — longer bolt, different configuration, field substitution — you need to ask: does the hardware I'm using still have enough capacity for this new configuration? This applies whether you're hanging structural steel or mounting equipment to a frame.

The fastener's rated strength is only half the equation. The other half is the connection geometry. A Grade 8 bolt has excellent tensile strength — but if the material it's pulling against can't transfer that load to the structure, the bolt's strength rating becomes irrelevant. The Hyatt walkway didn't fail because the rod snapped. It failed because the connection around it gave way.

Field substitutions need engineering eyes. In the Hyatt case, the change went from contractor to contractor without a licensed structural engineer recalculating the consequences. For any structural connection, a change in how fasteners are configured needs to go through the same review process as the original design.

Verify bearing surface capacity, not just fastener grade. Specifying a high-strength bolt isn't enough if the washer, nut, or base material can't distribute the load. These components work as a system. Failure in any one of them is failure in all of them.

The Takeaway

What failed at the Hyatt Regency wasn't the idea of using threaded rods to hang walkways. It was a chain of decisions — a field change, a missed load recalculation, an under-specified connection — that put hardware in a situation it was never rated to handle.

114 people died because someone assumed a "minor" change to how two rods were connected didn't need a second look.

Every fastened connection carries a load. That load has a number. The hardware you use has a rated capacity. Those two numbers need to match — not approximately, not roughly, not "probably fine." They need to match every time, for every connection, including after any field change.

That's not overcaution. That's engineering.
