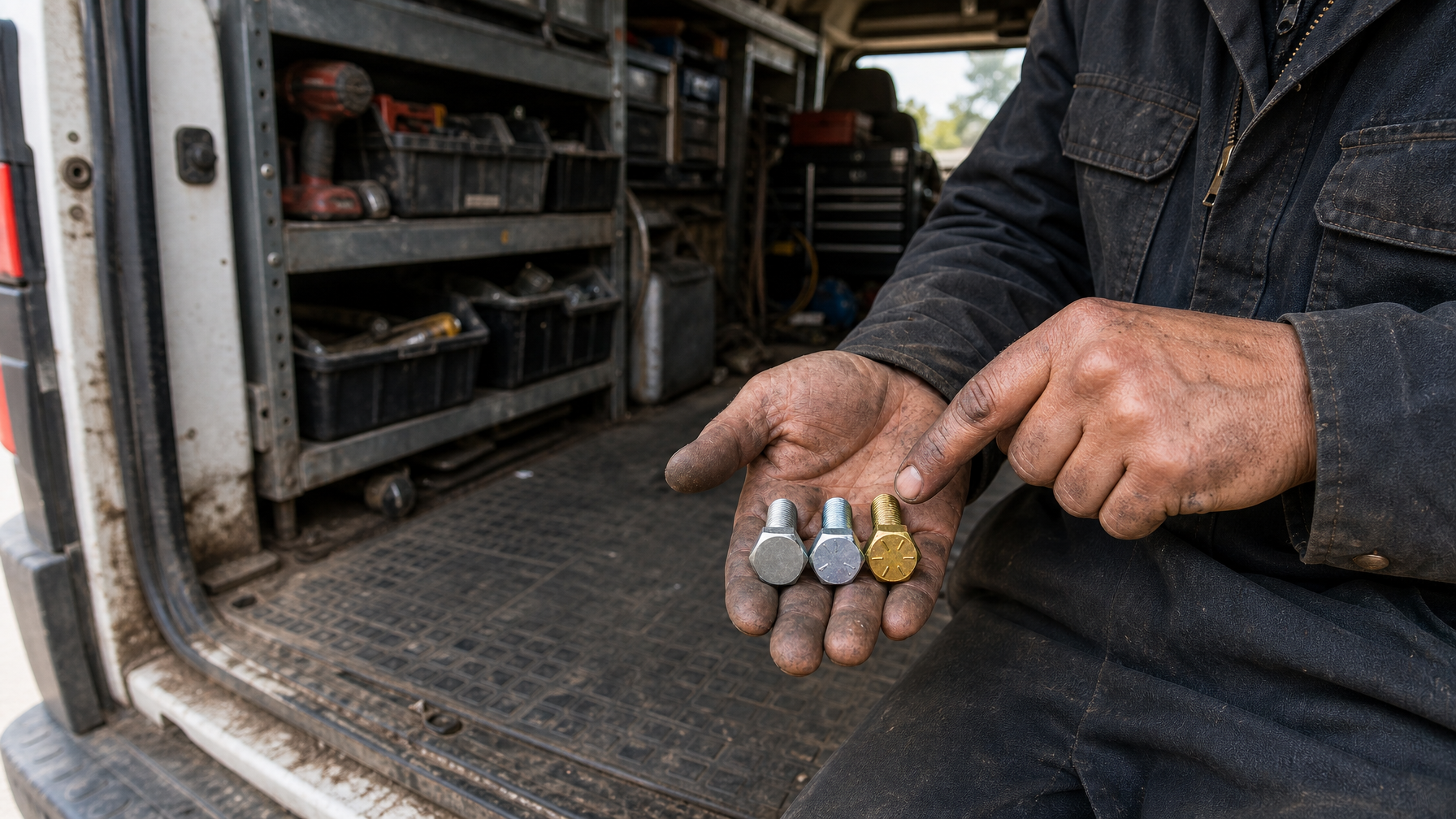

Bolt Grades Explained: Why the "Strongest" Option Isn't Always Right

A fleet maintenance manager called us a few years ago with a problem. He'd been specifying Grade 8 bolts across his entire truck fleet for close to a decade. "Strongest available," he said. "Why would I use anything less?"

He was finding broken bolts. Not stripped threads, not loosening — actual fractures. The failure pattern was showing up consistently on suspension and driveline components, exactly where the bolts took the most vibration and shock load.

Grade 8 was the wrong call. Not because it was too strong, but because it was too hard. Under repeated impact, it was cracking rather than bending.

This is the bolt grade conversation we have more often than almost any other. Here is what you actually need to know.

What a Bolt Grade Actually Tells You

"Bolt grade" refers to a standardized strength classification developed by the Society of Automotive Engineers (SAE) through the J429 specification. A grade communicates three things:

• Tensile strength: The maximum load the bolt withstands before fracture.
• Proof load: The load a bolt handles without permanent deformation.
• Yield strength: The point at which it begins to deform permanently.

The material matters too. Grade 2 uses low-carbon steel. Grade 5 uses medium-carbon steel that has been heat-treated. Grade 8 uses quenched and tempered medium-carbon alloy steel, which is where the hardness — and the brittleness — comes from.

The Three Grades You'll Use 90% of the Time

Grade 2 — The Everyday Workhorse

Grade 2 is low-carbon steel with no heat treatment. It carries a minimum tensile strength of 74,000 psi for sizes up to 3/4 inch and is the least expensive SAE grade you'll encounter.

It fits low-stress, non-structural applications: light fixtures, cabinetry, furniture assembly, and utility mounting hardware. For anything that carries meaningful load, handles vibration, or sits in an outdoor environment, Grade 2 is usually not the right call.

The bolt head has no radial line markings. If you pick up a bolt with no markings and no manufacturer stamp, treat it as Grade 2 until you have reason to believe otherwise.

Grade 5 — The Right Default for Commercial and Fleet Work

Grade 5 covers most commercial, fleet, industrial, and light construction fastening needs. Heat-treated medium-carbon steel gives it a minimum tensile strength of 120,000 psi. It balances strength, ductility, and cost better than any other SAE grade for general-purpose work.

If you're bolting up equipment enclosures, vehicle body and frame components, brackets, flanges, or general structural connections, Grade 5 is the right starting point. The zinc-plated finish on most Grade 5 hex cap screws also provides a serviceable level of corrosion resistance for indoor and semi-protected environments.

The head marking is three radial lines — easy to confirm at a glance. Browse Grade 5 hex cap screws at NutsandBolts.com.

Grade 8 — High Strength, With a Condition

Grade 8 uses quenched and tempered alloy steel with a minimum tensile strength of 150,000 psi. It is correct for high-static-load applications: heavy equipment, structural connections that require high clamping load, and fastened joints where load is constant rather than cyclical.

It carries six radial lines on the bolt head and typically comes with a yellow zinc finish — a reliable visual indicator when you're pulling from a storage bin.

The key phrase is "static load." We'll come back to why that matters. Shop Grade 8 hex cap screws at NutsandBolts.com.

How to Read the Head Markings

The lines on a bolt head are a standardized identification system, not decorative:

Stainless steel bolts carry A2 or A4 markings. Metric bolts use an entirely different property class system (see below). Note that Grade 8 bolts also carry a manufacturer's identification mark alongside the radial lines — that mark is a traceability requirement, not a grade indicator.

When Grade 8 Works Against You

The fleet manager's problem connects to a straightforward principle in material science: strength and ductility trade off against each other. A harder bolt is less ductile. Under shock loads, vibration, and impact, a more ductile bolt bends slightly before it fails — and that bending is a visible warning. A Grade 8 bolt under the same conditions fractures with far less advance notice.

This shows up most often in:

• Vehicle suspension and driveline assemblies
• Agricultural equipment under constant vibration
• Any application where fasteners are torqued by feel rather than by calibrated specification

The fix is not to reach for a weaker bolt — it is to match the grade to the load type. Static high-clamping load? Grade 8 is right. Dynamic, vibrational, or shock load environment? Grade 5 is almost always the smarter call, and it is the answer we gave the fleet manager.

What About Metric Bolts?

Metric fasteners use the ISO property class system rather than SAE grades. The two classes you'll encounter most:

• Class 8.8: Roughly equivalent to SAE Grade 5 in tensile strength (800 MPa minimum tensile, 640 MPa proof load). The standard choice for machinery and general industrial applications.
• Class 10.9: Roughly equivalent to Grade 8 (1,040 MPa minimum tensile). Use it in the same high-static-load applications where you'd specify Grade 8 in inch sizes.

The SAE and ISO systems are not interchangeable — thread forms, dimensions, and qualification requirements differ — but the load-type guidance above applies to both. NutsandBolts.com carries Class 10.9 zinc-plated hex cap screws for high-load metric applications.

Getting Your Fastener Supply Organized by Grade

One area where grade confusion turns into real cost is mixed fastener storage. When Grade 2, Grade 5, and Grade 8 bolts of the same size end up in the same bin, a crew member is going to grab the wrong one. The head markings are small. In a busy shop, no one stops to look.

The most reliable fix is organized storage by grade — separate labeled positions for each size and grade combination. NutsandBolts.com assortment kits include divided, labeled compartments that keep grades and sizes separated from the start.

For B2B customers in Massachusetts, Rhode Island, and Connecticut, we offer complimentary 3-hour fastener organization sessions. We come on-site, assess your current inventory, and help you set up a system that works for your team's actual workflow. Reach out to us here to learn more.

The Rule Worth Following

When someone tells you to "just use Grade 8 for everything," push back. Grade 5 handles the majority of commercial, fleet, and industrial applications without the brittleness risk, and it costs less. Save Grade 8 for the applications where it is genuinely specified, and treat Grade 2 as the low-stress option it is.

The decision tree is simple: know the load type before you specify the grade.

• Static load, high clamping requirement: Grade 8 (or Class 10.9 metric).
• Dynamic, vibrational, or shock load: Grade 5 (or Class 8.8 metric).
• Light-duty, non-structural, low-stress: Grade 2.

NutsandBolts.com carries Grade 5 and Grade 8 hex cap screws across a full range of inch and metric sizes, with same-day shipping on most items. If you are sorting out a specification or trying to clear up a mixed inventory, contact us directly — we are happy to help you get it right.
