The Anchor That Wasn't Built to Hold: How the Wrong Epoxy Brought Down Boston's Big Dig

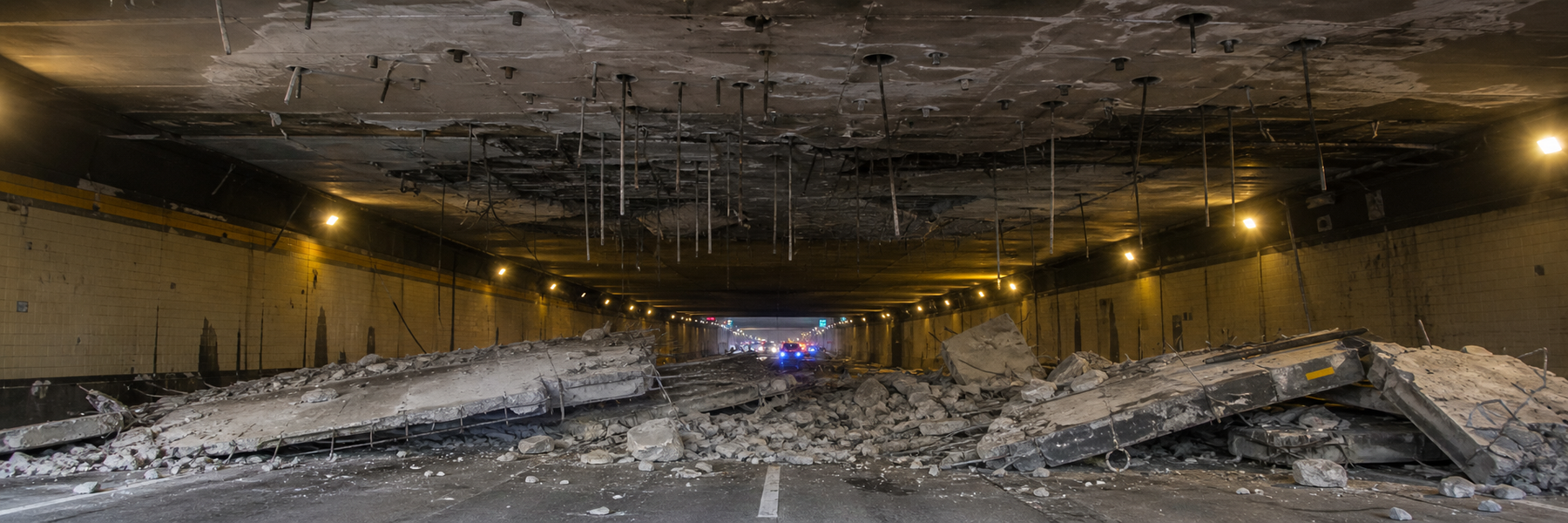

Just after 11 p.m. on July 10, 2006, Milena Del Valle and her husband Angel were driving through the I-90 Connector Tunnel in Boston — part of the massive infrastructure project known as the Big Dig — when approximately 26 tons of concrete ceiling panels collapsed onto their car. Milena was killed. Angel survived with serious injuries.

The National Transportation Safety Board investigated and published its findings in July 2007 (Report NTSB/HAR-07/02). The conclusion was specific and technically clear: the wrong type of epoxy anchor had been used to attach the ceiling panel hanger rods to the concrete overhead — and that epoxy, under years of sustained deadweight load, had slowly crept until it let go.

What Was Holding the Ceiling Up

The I-90 Connector Tunnel's ceiling system used a series of large concrete panels, each weighing thousands of pounds, suspended from the tunnel roof by steel hanger rods. Those rods were anchored into the overhead concrete using adhesive anchors — bolts set into drilled holes and held in place by an injected epoxy resin.

The epoxy chosen for this application was a fast-set formulation supplied by Powers Fasteners, Inc. — a product designed to cure quickly and get construction moving fast. On a job site, that sounds like a practical advantage. The problem: fast-set epoxy is not rated for sustained-load applications.

What Went Wrong: Epoxy Creep Under Sustained Load

Epoxy anchors are not all the same. The critical distinction — one that is easy to overlook on a spec sheet — is between fast-set and slow-set (or creep-resistant) formulations.

Fast-set epoxy cures quickly, which is useful for applications where the bolt experiences dynamic or intermittent loads. But under a constant, unrelenting deadweight load — like a ceiling panel that never stops pulling on the anchor — fast-set epoxy undergoes a slow plastic deformation called creep. Over time, the resin shifts and flows microscopically within the hole. The bond relaxes. The anchor loses grip.

The NTSB found that this is exactly what happened. The epoxy used in the I-90 tunnel had been creeping for years, gradually losing its hold on the anchor rods. The system had no meaningful redundancy to catch a failing anchor before it reached the point of no return. On the night of July 10, 2006, enough anchors in one section had crept far enough that the panels could no longer be supported. They fell.

The NTSB report identified the use of fast-set epoxy for a sustained-load anchor application as a central causal factor. Powers Fasteners was later indicted for involuntary manslaughter in connection with the failure.

The Right Choice for the Job

For anchors carrying sustained deadweight loads — ceiling systems, overhead mechanical equipment, suspended walkways, bridge fixtures — the correct product is a slow-set, creep-resistant epoxy anchor that is explicitly rated and tested for long-term sustained load.

The distinction matters in several ways:

Product certification. Creep-resistant adhesive anchors carry specific load ratings for sustained deadweight applications, tested under long-duration loading conditions. Fast-set anchors do not. When specifying or ordering anchor bolts for overhead structural applications, you need to verify that the adhesive system carries a sustained-load certification — not just a short-term pull-out strength rating.

Material chemistry. Slow-set epoxy systems typically use different resin formulations with higher glass transition temperatures and less susceptibility to viscous flow under load. Hybrid systems — epoxy-acrylate or vinylester — also offer creep resistance that fast-set pure epoxies lack. The speed of the cure and the long-term performance under load are two separate properties, and you cannot assume one predicts the other.

Load type matters as much as load magnitude. An anchor bolt may pass a short-term pull-out test at a load far above the design requirement, but still fail under that same load applied continuously over months or years. A 5,000-pound anchor that holds 10,000 pounds in a proof test may creep to failure under 3,000 pounds applied every hour of every day for five years. This is why the load type — static, dynamic, sustained — is as important as the load value when specifying a fastener system.

Redundancy is a backup, not a substitute. The tunnel's ceiling system had limited redundancy — when one anchor began to fail, there was no mechanism to redistribute the load safely or signal that something was wrong. In critical overhead applications, redundant anchor points and inspection protocols exist precisely because no single fastener system should be trusted to hold indefinitely without monitoring. Specifying the right anchor reduces the risk; building in redundancy catches the edge cases.

What the Inspection and Specification Process Missed

The Big Dig was one of the most expensive and closely managed construction projects in American history. The fact that a wrong product specification went undetected for years points to a gap that appears in many large-scale projects: the difference between specifying a fastener category and specifying the right fastener for the specific loading condition.

Anchor bolts are often treated as commodity items — ordered by diameter, embedment depth, and short-term strength. The sustained-load performance, creep resistance, and certification for overhead deadweight application are secondary attributes that require deliberate attention during specification. On a project with thousands of anchor bolts installed across miles of tunnel, that kind of detail is easy to lose.

The NTSB made recommendations to the Federal Highway Administration and transportation departments across all 50 states following the collapse, specifically addressing the use of adhesive anchors in overhead applications, inspection requirements, and the need for load-specific product certification.

The Lesson

Every fastener carries more than one set of properties. A bolt that is the right diameter, the right grade, and the right length can still be the wrong fastener — if the method used to install it, the adhesive used to anchor it, or the load type it faces does not match the product's actual design envelope.

In the I-90 Connector Tunnel, the anchor bolts themselves were not the problem. The epoxy holding them to the concrete was. It was a fast-set product specified for a sustained-load application — two things that should never go together in an overhead structural system. The result was a slow-motion failure that played out over years before ending in seconds.

The right fastener for the job is not just the right size or the right grade. It is the right product, with the right certification, for the right load condition. In overhead structural applications, anything less is a liability that compounds every day it stays in place.

Source: National Transportation Safety Board, Highway Accident Report NTSB/HAR-07/02, "Ceiling Collapse in the Interstate 90 Connector Tunnel, Boston, Massachusetts, July 10, 2006," adopted July 10, 2007. Available at ntsb.gov.
