The Insulation That Hid the Damage: How Corroded Valve Bolts Released 554 Pounds of Chlorine

On the morning of October 1, 2020, workers at the BASF facility in Geismar, Louisiana noticed chlorine leaking from a drain valve in the methyl diisocyanate production plant. A maintenance team was dispatched to deal with it. A contractor reached for an impact wrench to retighten the bolts on the valve's bonnet — and that's when things went catastrophically wrong.

The vibration from the wrench was all it took. The bolts failed instantly. The top half of the drain valve — the closing element, stem, and handle — separated from the body. Approximately 554 pounds of toxic chlorine gas poured into the plant. One BASF employee was seriously injured. The facility went into emergency response mode.

The U.S. Chemical Safety and Hazard Investigation Board (CSB) investigated the incident and published their findings in their Incident Reports Volume 2 in March 2025. Their conclusion was clear: the probable cause was the catastrophic failure of corroded bolts in the drain valve's bonnet.

But how do valve bolts in an industrial plant get so corroded that an impact wrench can shear them apart? The answer is a lesson every maintenance engineer and procurement manager in chemical processing should keep close.

What Went Wrong

Here's the chain of events the CSB reconstructed:

The drain valve was in chlorine service — meaning chlorine gas regularly passed through it. At some point, chlorine began leaking from the valve itself. That leaking chlorine reacted with condensed water that had accumulated inside the pipe's insulation blanket. The chemical reaction produced hydrochloric acid (HCl) — one of the most corrosive substances a metal fastener can encounter. That acid then sat against the valve body and its bonnet bolts, eating into the metal over time.

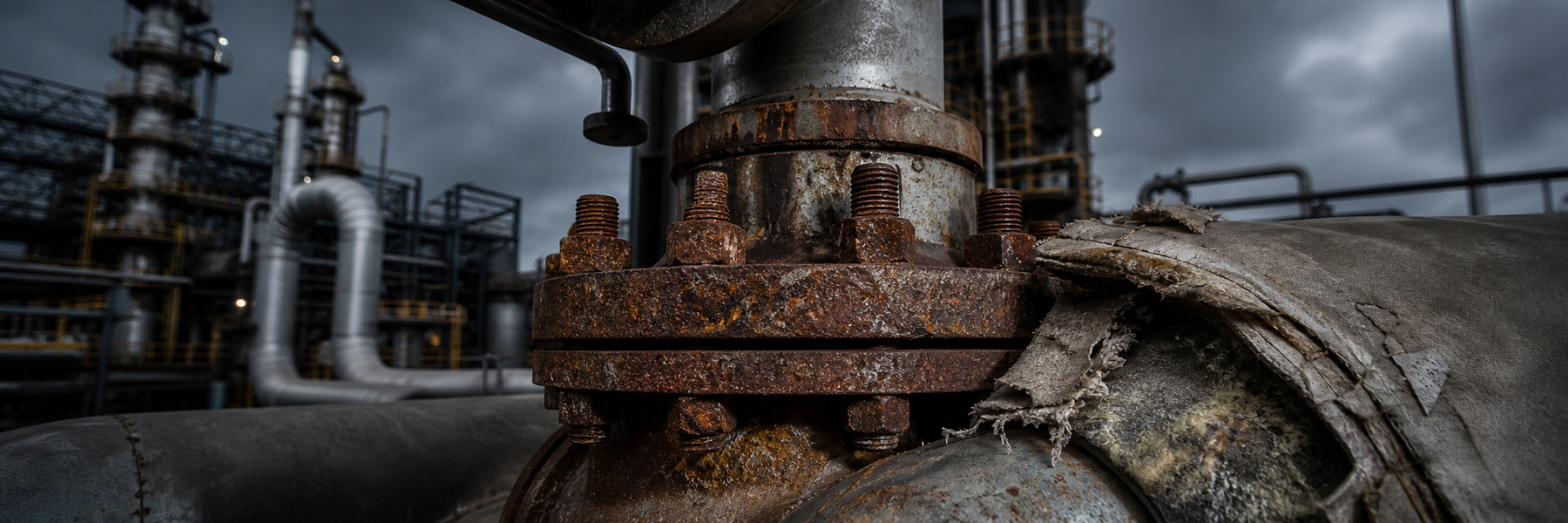

This phenomenon has a name in industry: Corrosion Under Insulation (CUI). It's one of the most insidious forms of fastener degradation because it's invisible. The insulation blanket looks fine from the outside. The valve body looks intact. But underneath, the metal is being dissolved.

By the time the maintenance crew arrived to retighten those bolts, the fasteners were already structurally compromised. They just didn't know it. The CSB investigators found that the valve was "visibly dilapidated" — a description that raises its own questions about inspection protocols — and that three other valves at the facility showed similar corrosion after the incident.

The safe work permit for the job authorized hand tools only. The contractor used an impact wrench. That unauthorized step added vibration to an already-failing connection, and the bolts gave way.

The Fastener Mistake at the Root of It

The CSB report focuses on the corrosion event, but the engineering question beneath it is this: what were those bolts made of, and was that the right material for chlorine service?

Standard carbon steel bolts — even zinc-plated or galvanized ones — have no meaningful resistance to hydrochloric acid. HCl attacks carbon steel rapidly and aggressively. Even common austenitic stainless steels like 304 and 316 have limitations in wet chlorine or HCl service. 316 stainless, which contains molybdenum for improved chloride resistance, performs better than 304, but in concentrated HCl or high-temperature chlorine environments it can still corrode.

For a chlorine service application like the BASF drain valve, the correct fastener materials are those engineered specifically for halogen and acid environments:

Hastelloy C-276 is the industry benchmark for wet chlorine, hydrochloric acid, and chlorine dioxide service. It maintains its integrity across a wide concentration and temperature range and is the standard choice for valves, flanges, and fittings in chlorine processing lines.

Hastelloy C-22 offers similar resistance and actually outperforms C-276 in some oxidizing acid environments — relevant in a plant where chlorine is present alongside other chemicals.

Monel 400 (a nickel-copper alloy) is a traditional choice for chlorine gas service and performs well in dry chlorine conditions, though it requires caution in wet chlorine or HCl environments above certain temperatures.

The principle behind all of these choices is the same: the fastener material must resist the actual chemical environment it lives in — not just the nominal process conditions under normal operation, but the realistic exposure scenario including leaks, condensation, and secondary reactions.

The CUI Problem Nobody Talks About Enough

What makes this incident particularly instructive is the role of the insulation blanket. The Geismar valve was insulated — standard practice for temperature control in chemical processing. But insulation creates a hidden cavity around the pipe or valve body. If process fluid leaks, or if atmospheric moisture migrates in, that cavity becomes a trap.

The trapped moisture reacts with any leaked process chemical. In this case: chlorine plus water equals hydrochloric acid, sitting in contact with carbon steel bolts, unseen, for however long the leak had been present.

This is why the right approach in chemical service isn't just choosing the correct fastener material for the process fluid — it's also accounting for the insulated environment around the fastener. An insulated valve in chlorine service should use CUI-resistant bolt materials throughout, because the insulation itself can become a corrosion factory if the seal isn't perfect.

Industry standards like NACE SP0198 (now AMPP SP0198) specifically address corrosion under insulation and provide guidance on material selection for insulated equipment in corrosive service.

The Right Bolt for the Job

Here's the practical takeaway, whether you're specifying fasteners for a new chemical plant valve or reviewing a maintenance replacement:

Match the bolt material to the actual chemical environment, not just the pipe schedule. In chlorine or HCl service, that means nickel-based alloys — Hastelloy C-276, C-22, or Monel 400 — not carbon steel, not standard stainless. The cost difference between a carbon steel stud bolt and a Hastelloy one is real. The cost of a chlorine gas release, a seriously injured employee, and an emergency shutdown is not a comparison worth making.

Insulation isn't a seal. Any valve or flange in chemical service should be inspected under its insulation blanket on a defined schedule. CUI doesn't announce itself. By the time a valve looks dilapidated from the outside, the bolts inside may already be gone.

Know your permit, and follow it. The Geismar contractors were authorized to use hand tools only. The decision to use an impact wrench added the one force the corroded bolts couldn't absorb. A correct material choice might have meant the bolts survived that wrench. But the right material, combined with the right procedure, is what actually keeps people safe.

The BASF Geismar chlorine release is a textbook example of what happens when fastener material selection doesn't account for the full operating environment — including the secondary chemistry that happens when processes leak, when moisture collects, and when insulation does what insulation does. The bolts failed because they were the wrong material for the job they were actually doing.

In fastener selection, "the job" isn't just what's written in the process design spec. It's everything the fastener will encounter, planned or not. Get that part right, and the wrench — power tool or otherwise — becomes a non-event.
