The Bolt That Wasn't Built for 24 Inches

In May 2026, GM recalled 2,464 full-size SUVs — Escalades, Tahoes, Suburbans, and Yukons — because dealers had been installing the wrong wheel hub bolts on vehicles equipped with 24-inch wheels. The NHTSA filing confirmed the root cause: the parts catalog didn't distinguish between wheel sizes. The same bolt was listed for both standard and 24-inch wheel packages.

The bolts weren't counterfeit. They weren't corroded. They passed every inspection. They were just the wrong spec for the job.

Why a Bigger Wheel Changes Everything

To understand why this matters, you have to think about moment arm — the distance between a pivot point and the point where a force is applied.

When a wheel hits a bump, curb, or pothole, the impact travels through the tire and into the wheel. That force has to pass through the hub bolts before it reaches the vehicle's suspension. The further from the hub center the force is applied — which is exactly what a larger-diameter wheel does — the more leverage it generates at the bolt.

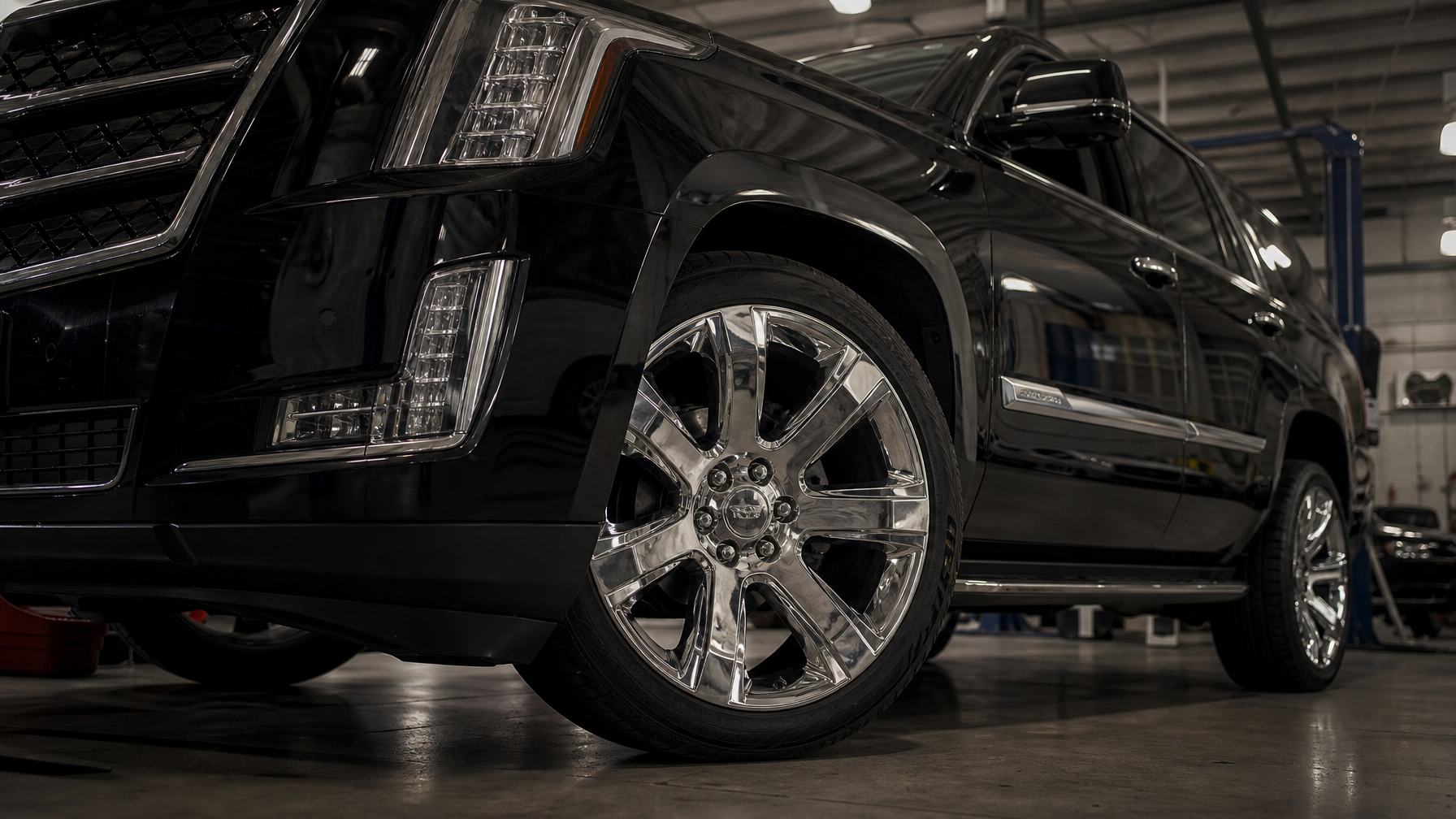

A 24-inch wheel creates a meaningfully longer moment arm than a 19- or 20-inch wheel. That translates directly into higher bending load on every hub bolt, every time the vehicle encounters any road irregularity. Under repeated cycling, that kind of bending load causes fatigue. And fatigue failures don't announce themselves — they accumulate quietly until the bolt can't hold.

What the Parts Catalog Got Wrong

The issue wasn't that the bolts were substandard. The issue was that no one re-evaluated the fatigue load requirement when 24-inch wheels became an available option on these models. The parts catalog treated hub bolts as interchangeable across wheel sizes, and dealers following that catalog had no reason to question it.

This is a documentation failure as much as an engineering one. When the bolt specification was set, it was set for a specific wheel geometry. When that geometry changed, the spec needed to change with it. It didn't.

What This Means for Fleet Managers

If you're running a fleet with large-format GM SUVs — and especially if any of those vehicles have been upfitted or modified with non-standard wheel packages — there are two questions worth asking right now:

1. Are the wheel hub bolts on any 24-inch-equipped vehicles the correct spec for that wheel size?
2. If wheels have been changed since the vehicles were placed in service, was the fastener specification reviewed when that decision was made?

Wheel separation at highway speed is a catastrophic failure mode. It doesn't trigger a warning light or a maintenance flag. It produces a loss-of-control event with no recovery window.

The Rule That Should Stick

When something changes — wheel size, load rating, payload configuration, upfit weight — the fastener specification is part of what needs to change too. Not every bolt that fits is the right bolt for the job.

The GM recall didn't happen because someone cut corners. It happened because a well-documented spec was never revisited when the conditions it was written for no longer applied. That kind of failure can happen in any operation, on any equipment, with any fastener that looks like it fits.

The fix is simple in principle: ask what changed, and verify the fastener spec reflects it.

Source: NHTSA Safety Recall Report, May 2026. Recall covers 2024–2026 model year Chevrolet Tahoe, Chevrolet Suburban, GMC Yukon, Cadillac Escalade, and Escalade ESV vehicles equipped with 24-inch wheels.
