The Grade 5 Gamble: How Under-Specified Shock Bolts Triggered a Major RV Suspension Recall

When a 14,000-pound fifth-wheel trailer travels down the highway at 65 miles per hour, every bump, expansion joint, and pothole sends thousands of pounds of dynamic force surging through its suspension. In May 2026, component manufacturer Lippert Components issued a major federal safety recall (NHTSA Campaign 26E-032) affecting thousands of luxury travel trailers and fifth wheels—including Brinkley Model Z and Grand Design Reflection units equipped with Curt Touring Coil Suspensions (TCS).

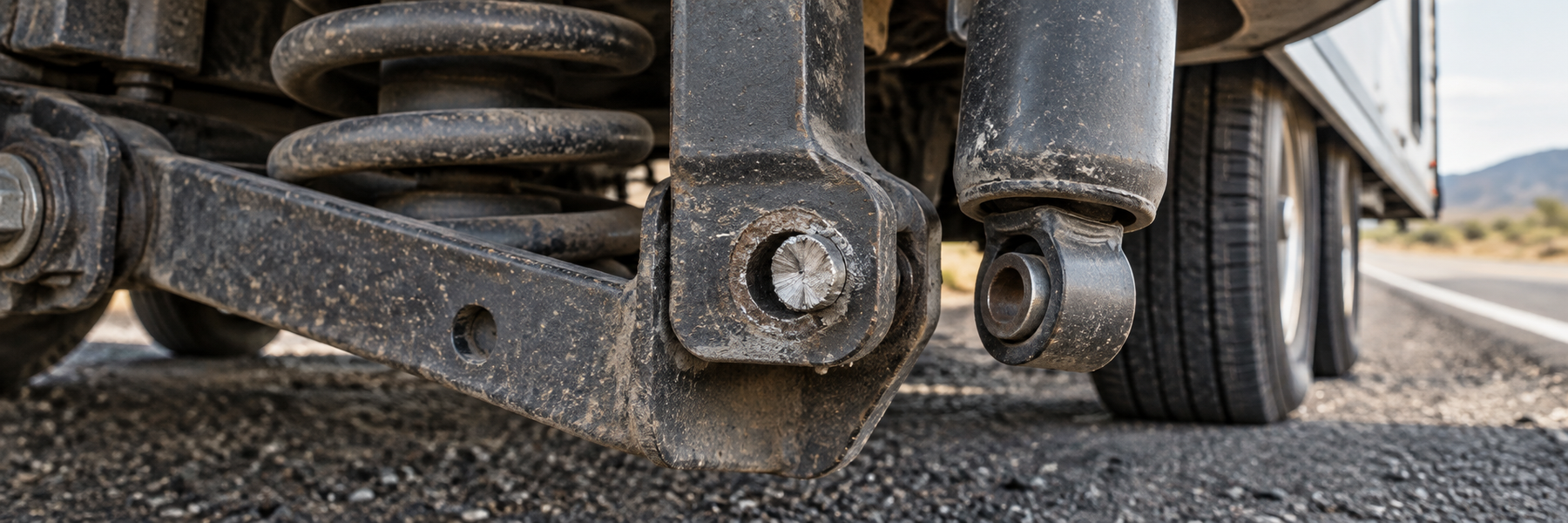

The root cause of the widespread suspension failures was remarkably simple: the 3/8-inch bolts securing the shock absorbers to the independent coil spring mounting brackets were under-specified SAE Grade 5 fasteners. Under continuous highway vibration and severe dynamic shear loading, these standard bolts suffered cyclic fatigue failure, bending and shearing clean off at the mounting clevis.

Understanding why these fasteners failed offers a critical engineering lesson in the vital difference between static tensile strength, dynamic shear loading, and fatigue limits when specifying hardware for heavy-duty machinery.

What Went Wrong: Dynamic Shear vs. Static Tension

In heavy towable equipment, shock absorbers are not merely comfort items. They damp the fierce rebound forces generated by heavy coil springs carrying up to 7,000 pounds per axle. Every time a trailer tire drops into a highway dip, the shock absorber extends and compresses rapidly, exerting severe dynamic shear loads on the mounting bolts passing through the shock eyelet and mounting bracket.

The original assembly specification relied on standard 3/8-inch SAE Grade 5 carbon steel bolts. Grade 5 bolts are heat-treated medium carbon steel fasteners commonly marked with three radial lines on the head. They carry an acceptable minimum tensile yield strength of 92,000 psi and a proof load of 85,000 psi, making them suitable for moderate structural applications like automotive body panels, light brackets, and frame crossmembers.

However, suspension shock mounts do not experience steady, predictable tensile loads. They operate under severe cyclic shear and bending forces. Under continuous highway miles:

1. Inadequate Fatigue Limit: Grade 5 carbon steel has a significantly lower fatigue endurance limit than alloy steel. Repeated stress cycles beneath the material's yield strength gradually initiate microscopic fatigue cracks, usually at the root of the first engaged thread inside the mounting bracket.
2. Micro-Fretting and Clamp Loss: Variance in initial tightening torque allowed tiny amounts of micro-movement (fretting) between the bolt shank and the mounting sleeve. As the bolt lost initial clamp load, the joint shifted from a friction-grip joint into a direct single-shear pin connection, accelerating thread wear and stress concentration.
3. Shear Fracture: Once the fatigue crack propagated across the core diameter of the 3/8-inch bolt, the remaining cross-sectional area could no longer withstand peak impact loads. The bolt snapped instantly, allowing the shock absorber to detach from the suspension arm.

When a shock absorber breaks free on a moving trailer, the consequences are immediate and dangerous. Without shock damping, the un-damped coil spring oscillates violently, causing uncontrollable trailer sway and instability at highway speeds. Furthermore, the loose, hanging shock body can strike trailing tires or sever nearby hydraulic brake lines.

The Engineering Remedy: Upgrading to Grade 8 Alloy Steel

To eliminate the shear failure hazard, the federal recall procedure required replacing every 3/8-inch Grade 5 shock bolt with a high-strength SAE Grade 8 alloy steel fastener, applying medium-strength threadlocking compound (Loctite 242), and torquing the hardware to a precise specification.

The technical justification for switching from Grade 5 to Grade 8 comes down to mechanical property metallurgy:

• Yield Strength: SAE Grade 8 bolts (identified by six radial lines on the bolt head) are manufactured from quenched and tempered medium-carbon alloy steel. Grade 8 carries a minimum yield strength of 130,000 psi—a 41% increase over Grade 5.
• Proof Load: Grade 8 proof load rises to 120,000 psi (vs. 85,000 psi for Grade 5), providing a far larger elastic margin before permanent deformation occurs during sudden suspension bottoming events.
• Fatigue Resistance: The refined grain structure and high tensile strength of heat-treated alloy steel dramatically improve the fatigue endurance limit, allowing the bolt to endure millions of high-frequency shear cycles without crack initiation.

In addition to upgrading the bolt grade, the recall procedure specified applying two threads of threadlocker and tightening the bolt to exact engineering torque limits. Proper torque creates high initial tensile clamp load across the mounting clevis joint. High clamp load clamps the shock eyelet sleeve tightly against the bracket faces, ensuring that lateral forces are transferred through surface friction rather than placing the bolt shank in direct shear.

Fastener Selection Rules for High-Load Applications

The Curt TCS shock bolt recall underscores four essential rules for engineers, technicians, and fleet maintenance managers when selecting hardware for high-stress assemblies:

1. Never Substitute Grade in Dynamic Applications: Standard Grade 5 hardware should never replace Grade 8 or Metric Class 10.9/12.9 bolts in locations subject to dynamic impact, vibration, or fluctuating shear loads.
2. Account for Fatigue, Not Just Static Load: Calculating fastener size based solely on static trailer weight ignores dynamic amplification factors. Potholes and highway joints can easily triple or quadruple instantaneous joint loads.
3. Maintain Clamp Load to Prevent Shearing: Fasteners hold joints together primarily through clamp load. If torque is inadequate or threadlocker is omitted, joint loosening converts a clamped friction joint into a shear pin, drastically reducing joint lifespan.
4. Inspect Thread Engagement and Shank Placement: Ensure that unthreaded bolt shanks—not threaded sections—bear against the shear planes of mounting brackets. Threads acting as shear surfaces introduce severe stress risers that accelerate fatigue fracture.

Matching the fastener precisely to the load profile, operating environment, and mechanical stress mode is the only way to guarantee structural integrity. Whether securing a heavy trailer suspension or an industrial machine, choosing the right fastener for the job prevents costly downtime and keeps critical equipment safe on the road.
