The Wrong Bolt at 65 MPH: How an Assembly Line Mix-Up Risked Steering Loss in 2024 Trucks

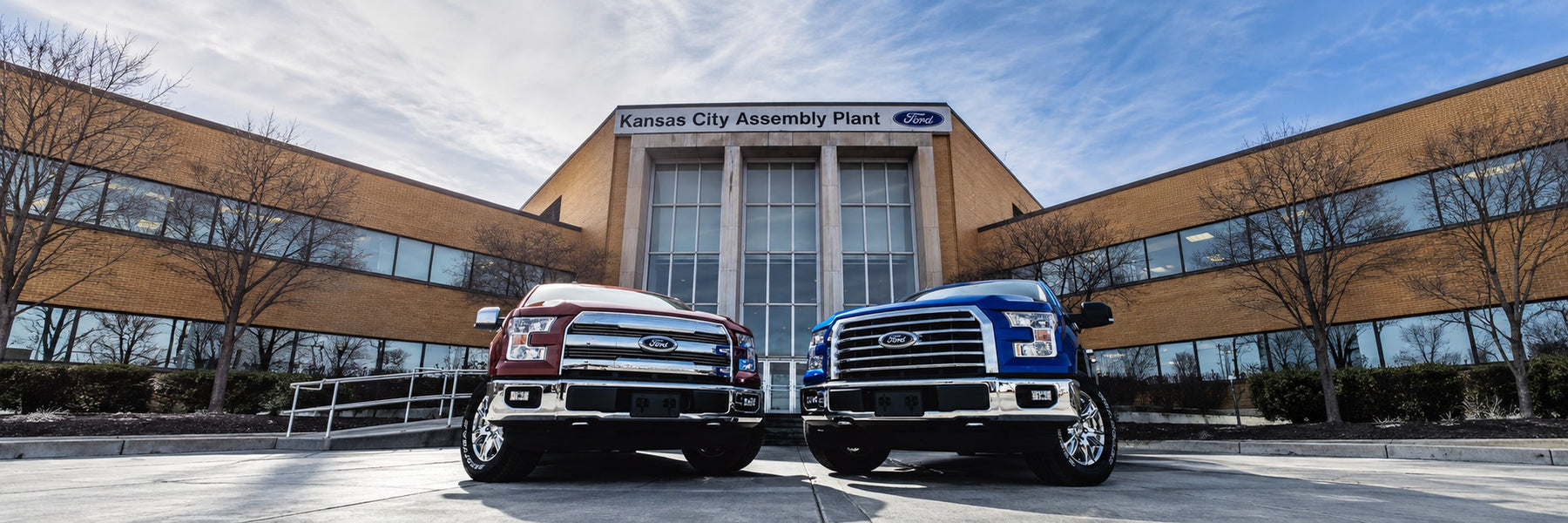

In May 2024, federal safety regulators issued a urgent safety notice under NHTSA Campaign Number 24V-329. The alert covered hundreds of brand-new 2024 pickup trucks built at Ford's Kansas City Assembly Plant. The hazard was straightforward: during factory assembly, technicians used the wrong fastener to connect the steering column lower shaft to the steering gear box.

While no crashes or injuries were reported prior to the recall, the potential consequence was severe. Under continuous road vibration and steering torque, an improper bolt on a splined steering coupling can back out or slip, leading to complete decoupling of the steering column from the steering gear. In plain English, the driver turns the steering wheel, but the front wheels do not respond.

This incident offers a crucial engineering lesson for fleet managers, technicians, and maintenance engineers: when securing critical steering and suspension components, a bolt that merely fits the hole is nowhere near enough.

What Went Wrong on the Assembly Line

Automotive steering systems rely on a splined shaft connection between the steering column and the hydraulic or electronic steering gear. To lock this joint together, engineers specify a pinch bolt assembly. The lower steering shaft yoke fits over the splined input shaft of the steering gear, and a high-strength pinch bolt passes through a relief groove in the splines, clamping the slotted yoke tightly around the shaft.

During the April 2024 assembly runs at the Kansas City plant, an operator or bin mix-up caused an unapproved bolt to be used in place of the factory-engineered steering shaft pinch bolt.

When an unapproved bolt is used in a splined pinch joint, three distinct failure mechanisms occur:

1. Inadequate Clamp Force: A standard bolt without the engineered shoulder diameter or thread pitch cannot properly close the split yoke around the splined shaft. Without adequate clamping force, the joint relies entirely on mechanical spline engagement rather than friction pre-load.
2. Lack of Positive Locking: Factory steering fasteners feature prevailing-torque threads or pre-applied chemical thread-locking patches designed to resist continuous rotational vibration. Standard bolts lacking these features easily loosen under cyclic steering inputs.
3. Improper Relief Groove Fit: Steering shaft pinch bolts serve a dual safety function. The bolt shank physically rests inside a circular groove machined around the splined shaft. If the bolt shank diameter is too small or improperly shaped, the shaft can slip out of the coupling even if the bolt remains in place.

Under real-world driving conditions—hitting potholes, negotiating tight turns, and experiencing engine bay thermal expansion—the improper fastener allowed the steering shaft joint to loosen, setting the stage for total steering separation.

The Engineering Solution: Matching the Fastener to the Joint

To resolve the recall, factory-trained technicians inspect affected vehicles and replace the incorrect hardware with the exact factory-engineered pinch bolt assembly, torqued precisely to engineering specifications.

Securing splined steering and driveline joints requires a specific fastener specification:

• High-Strength Material Grade: Steering column pinch bolts are subjected to severe shear and tension loads during hard maneuvering. They require heat-treated alloy steel rated at ISO Grade 10.9 or SAE Grade 8 to prevent stretching or shear failure.
• Prevailing-Torque Locking Features: To combat constant road vibration, these fasteners incorporate distorted threads or high-temperature nylon/chemical patches that maintain locking torque even if clamp load is momentarily reduced.
• Precision Shoulder & Shank Tolerances: The unthreaded shank must match the relief groove of the splined shaft exactly, providing a secondary mechanical lock that prevents axial separation.
• Controlled Torque Specification: Achieving the correct pre-load requires torquing the bolt to the exact manufacturer specification. Under-torquing leads to vibration loosening, while over-torquing can distort the cast yoke or strip the female threads.

Key Takeaways for Fleet Maintenance and Repair

Whether managing a commercial fleet, maintaining heavy construction equipment, or performing routine shop repairs, improper fastener substitution poses massive risks:

• Never Substitute Critical Hardware: Fasteners used in steering, braking, and suspension systems are engineered components. Substituting a standard hardware-store bolt into a pinch joint compromises the entire assembly.
• Verify Thread-Locking Requirements: Always check whether a critical joint requires prevailing-torque nuts, thread-locking compounds, or single-use prevailing-torque bolts.
• Follow Factory Torque Values: Torque specifications are calculated to achieve specific bolt elongation and joint clamping force. Always use a calibrated torque wrench on critical chassis fasteners.

The 2024 steering shaft recall reinforces a fundamental engineering truth: every fastener in a vehicle or machine serves a specific structural purpose. Matching the exact grade, thread type, shoulder profile, and locking mechanism to the load and environment is the only way to ensure safety and reliability.

Source: National Highway Traffic Safety Administration (NHTSA) Part 573 Safety Recall Report 24V-329, Ford Motor Company.
