What Are Well Nuts — and When Should You Actually Use One?

You're mounting an accessory to a fiberglass kayak hull, an RV roof panel, or a motorcycle fairing. The surface is hollow — or at least inaccessible from behind. A standard bolt-and-nut combination won't work. A rivet nut requires a setting tool you don't have. And drilling all the way through defeats the purpose.

This is exactly the problem the well nut solves.

What Is a Well Nut?

A well nut (also called a rubber nut or rawlnut) is a small blind fastener made of two components: a neoprene rubber body and a brass or steel threaded insert. The rubber sleeve has a flanged head at one end — that flange seats against the surface of the material you're fastening into. The threaded brass insert runs through the center.

When you insert a well nut into a pre-drilled hole and thread a bolt through it, the rubber compresses axially — it shortens and expands outward. That expansion wedges the rubber against the back side of the panel, creating a grip without any access from behind.

The result: a secure, removable fastener in a material where threading directly isn't practical, all with nothing but a standard bolt and a screwdriver.

How Well Nut Installation Works

Installation is one of the genuine strengths of the well nut: there's nothing complicated about it.

1. Drill the hole. Match the hole diameter to the well nut's outer diameter — typically 1/4" for a 10-32 well nut or 3/8" for a 1/4-20 size.

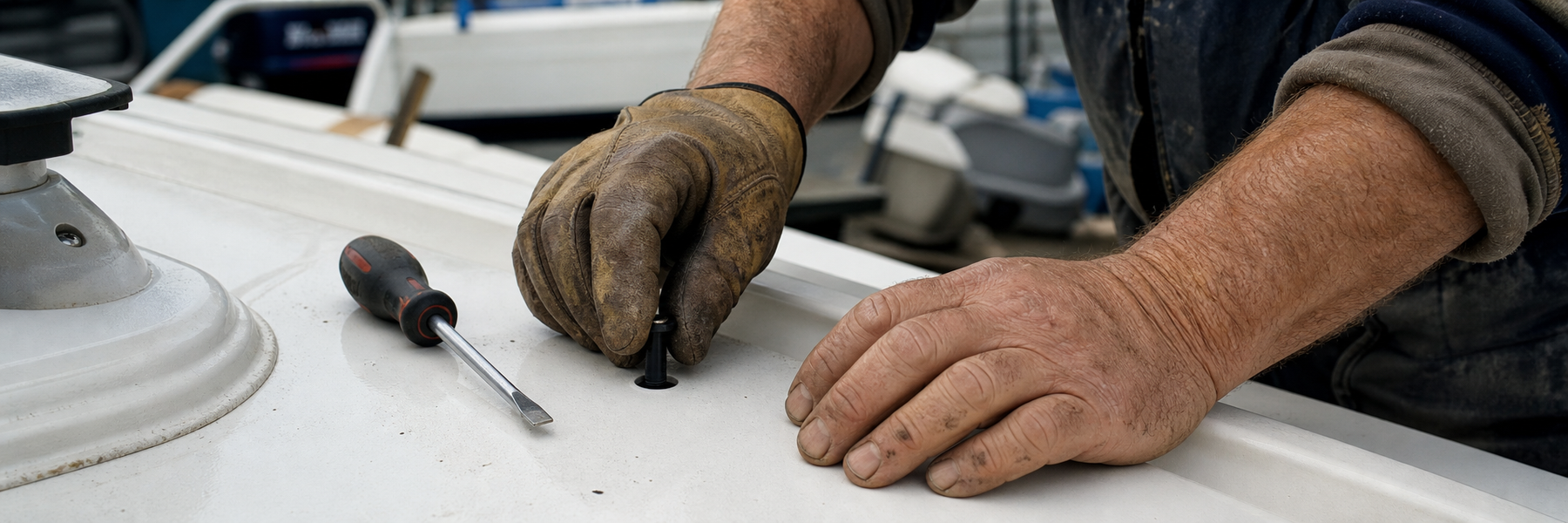

2. Insert the well nut. Push it into the hole until the flange seats flush against the surface.
3. Thread the bolt. Run your bolt through the mounting component and into the well nut's threaded insert.
4. Tighten. As the bolt pulls the brass insert toward the flange, the rubber between them squeezes and bulges outward — gripping the back of the panel.

No rivet gun. No mandrel. No setting tool. Just a bolt and a screwdriver or wrench.

Removal is just as straightforward: back the bolt out, and the rubber relaxes. The well nut stays in the hole, ready to be reused or replaced.

Where Well Nuts Actually Belong

Well nuts have a specific set of conditions where they outperform every other blind fastener option. Those conditions are:

Lightweight, hollow, or fragile panels. Fiberglass, thin sheet plastic, foam-core panels, and composite roofing materials don't take well to the crush force of a rivet nut setter. Well nuts expand gently — they grip without cracking or deforming delicate substrates.

Moisture-exposed environments. The neoprene rubber creates a watertight seal around the bolt shaft as it expands. That seal keeps water out of the hole, which matters in marine, RV, and outdoor settings where water intrusion causes corrosion and rot over time. Kayak builders and marine mechanics rely on well nuts specifically for this reason — the fastener holds and seals in the same motion.

Vibration-prone applications. The rubber body absorbs vibration naturally. That's why you find well nuts on motorcycle windshields, fairing panels, and automotive trim pieces where metal-on-metal fasteners would transmit vibration and eventually crack the surrounding material.

Situations where you may need to remove the fastener later. Unlike rivets or rivet nuts (which are permanently deformed on installation), well nuts are fully reversible. Back the bolt out, and you can remove and replace the mounted component cleanly.

Common use cases include:

• Kayak and canoe hardware (handles, cleats, rod holders)
• RV and boat solar panel mounting brackets
• Motorcycle and powersports fairings and windshields
• Automotive interior trim and dash panels
• Luggage racks and roof accessories on fiberglass tops

Where Well Nuts Don't Belong

The rubber body is the well nut's strength — and its limit.

Under sustained tension or heavy shear load, rubber deforms. A well nut holding a light accessory panel works fine. A well nut holding a roof rack carrying 80 pounds of gear is a different story — the rubber can creep and loosen over time, especially in heat.

Similarly, rubber degrades. In environments with high UV exposure, extreme temperatures, or contact with fuels and solvents, neoprene eventually hardens, cracks, or loses elasticity. When that happens, the grip is gone.

Don't use well nuts for:

• Structural or load-bearing connections
• High-heat environments (engine bays, exhaust proximity)
• Applications where the fastener contacts petroleum-based fluids
• Any joint where loosening under load could create a safety issue

If the application needs a rigid, permanent, high-strength anchor in thin material, a rivet nut (also called a rivnut or nutsert) is the right call. Rivet nuts require a setting tool, but they create a metal-to-metal threaded anchor that handles real load — at the cost of flexibility and repairability. Huckaerobolt's comparison of the two fastener types summarizes it well: well nuts prioritize sealing and flexibility; nutserts prioritize strength and permanence.

Sizing: What to Know Before You Order

Well nuts come in a range of thread sizes and lengths. The most common in North American applications are:

• 10-32 (smaller thread, used in lightweight panels and tight spots)
• 1/4-20 (the most common size for marine and RV applications)
• 5/16-18 (heavier applications and thicker panel stacks)

The length you need depends on the panel thickness. The well nut body needs to extend past the back surface far enough that the rubber expands behind it — a well nut that's too short for the panel thickness won't grip properly.

For most kayak and RV work, a 1/4-20 x 1" well nut in a 3/8" hole covers the majority of situations.

The Right Fastener for the Right Job

Well nuts are one of the most useful blind fasteners in a maintenance shop's inventory — until they're in the wrong application. For lightweight panels in wet, vibrating environments where you need a reversible, sealing connection, there isn't a better option that installs as fast. For anything that carries real structural load, reach for a rivet nut instead.

At NutsandBolts.com, we carry well nuts alongside our full range of specialty fasteners — including shoulder bolts, push nuts, and rivet hardware. If you're not sure which type your application calls for, our team is happy to help you spec it out. Need to stock up on specialty hardware for your shop? Browse our fastener assortment kits or contact us directly — if you're in MA, RI, or CT, we also offer free 3-hour fastener organization sessions for B2B customers who want to get their inventory sorted properly.

The right fastener doesn't just hold things together. It holds the right things together, in the right conditions, without failing when conditions change.
