What Is a U-Bolt — and How Do You Get the Size Right?

A work truck rolls into the fleet shop with a broken leaf spring. The tech pulls the old spring, grabs a replacement U-bolt from the parts bin, and bolts everything back up. Five hundred miles later, the owner is back with a loose rear axle and a spring saddle that's walked out of alignment.

The U-bolt wasn't stripped. It wasn't the wrong grade. The dimensions were close — but not right. The leg length was 1/4 inch short, which meant the nuts couldn't reach full thread engagement. Under load, they backed off.

This is how U-bolt problems happen. Not through obvious mistakes, but through sizing errors that look correct until the truck flexes under real-world load.

What a U-Bolt Actually Does

A U-bolt is a threaded rod bent into a U-shape, with nuts on both legs. Its job is to clamp one component to another — most often a leaf spring pack to an axle, or a pipe or tube to a bracket.

That sounds straightforward. The complication is that a U-bolt does its job through clamping force, not mechanical interlocking. If the bolt isn't the right size and torqued correctly, the clamp loosens. When the clamp loosens on a leaf spring assembly, the center bolt and spring pack can shift, accelerating wear on the leaves and, in severe cases, causing center bolt failure.

The Four Dimensions You Need to Get Right

Every U-bolt order requires four measurements. Guessing on any one of them creates the kind of problem described above.

Diameter (D): The cross-sectional diameter of the bolt rod itself — not the width of the whole assembly. Measure across the threads with a caliper. Common sizes range from 1/4" for light pipe brackets up to 1" for heavy truck axle applications.

Inside Width (C, also called the Hook): The distance between the two inner faces of the legs. This is the dimension that wraps around the pipe, axle, or component being clamped. Get this wrong and the U-bolt either won't seat properly or won't grip the component tightly enough.

Leg Length (L): Measured from the bottom inside of the bend to the end of the threaded leg. The leg must be long enough that, once the assembly is clamped tight, the nuts have full thread engagement — typically a minimum of one diameter's worth of thread engagement per nut, though application-specific specs vary. Short legs are one of the most common ordering errors we see.

Thread Length (T): The portion of each leg that carries threads. This determines how much adjustment range you have during installation and re-torque.

These four dimensions are standardized under Industrial Fastener Institute Standard IFI-136 for round-bend U-bolts, which is the reference most suppliers and OEM specs use. Portland Bolt outlines how this standard defines the measurement methodology if you need to verify what a supplier is quoting you.

Round Bend vs. Square Bend — the Shape Matters

U-bolts come in two primary bend configurations, and using the wrong one creates fit problems no amount of torque will solve.

Round bend U-bolts wrap around a circular cross-section — pipes, round tubes, exhaust components, and cylindrical axle housings on some light applications. The inside of the bend is curved to match the diameter of whatever it's clamping.

Square bend U-bolts have straight legs connected by a flat bottom section with 90-degree corners. These are standard for leaf spring applications where the spring pack sits flat against an axle pad. The square bend distributes clamp load evenly across the flat surface of the spring and pad.

Substituting a round bend for a square bend on a leaf spring application is a common field mistake. The round bend makes point contact instead of flat contact against the axle pad, concentrating stress and creating movement that the U-bolt torque can't overcome.

Material and Coating

For most fleet maintenance and construction applications, zinc-plated or hot-dip galvanized Grade 5 or Grade 8 U-bolts cover the majority of jobs. The choice depends on the environment and the required clamp force.

• Grade 5 handles most light-to-medium truck leaf spring applications and general pipe clamping.
• Grade 8 is appropriate for heavy-duty suspensions with high torque specs and load-reversing applications.
• Stainless steel makes sense for marine environments, HVAC ductwork, and applications where the U-bolt is exposed to corrosive chemicals or salt air. Be aware of thread galling risk with stainless — always lubricate threads before installation.
• Galvanized is a good choice for outdoor and underground pipe support where long-term corrosion resistance matters more than high tensile strength.

Grade 2 U-bolts show up on the market at low prices. They're fine for light static loads, but they don't belong in leaf spring or trailer axle applications where clamp load is critical and the fastener sees dynamic load cycles.

The Torque Step Most Shops Skip

Installing a U-bolt correctly isn't just about reaching the specified torque. It requires a re-torque after initial operation.

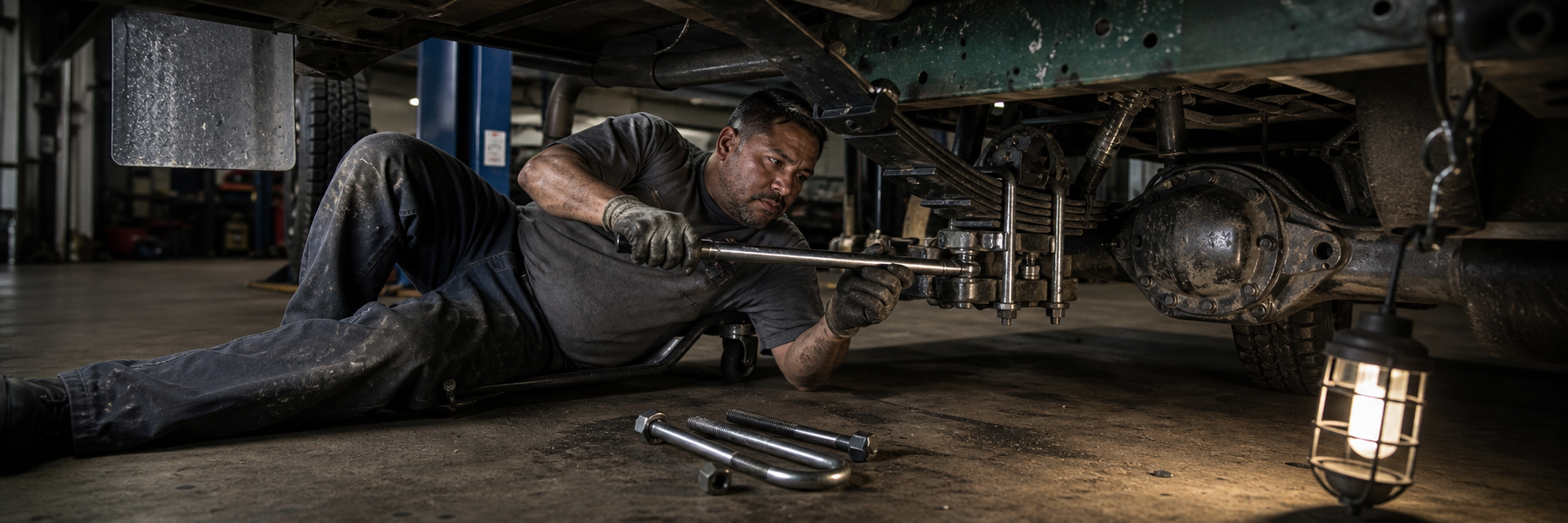

When you install a new leaf spring or U-bolt, the mating surfaces — spring leaves, axle pad, saddle plate — settle against each other slightly during the first operating cycle. That settling reduces clamp load, sometimes enough to let the assembly shift. Suspension Specialists — which has published fleet spring maintenance guidance for decades — recommends re-torquing U-bolt nuts after the first day's run, again at 500 miles, and at 1,000 miles.

This step gets skipped constantly in high-volume fleet shops because it requires pulling the truck back in after it's been returned to service. But a loose U-bolt is far more expensive than a 15-minute re-torque.

One more thing: use a torque wrench, not an impact gun. Impact wrenches can over-torque or under-torque a U-bolt, and you won't know which until there's a problem. Torque wrenches are the only tool that confirms the nut is actually clamping the assembly together, not just spinning on contaminated or poorly cut threads.

And once a U-bolt has been removed after proper torque, don't reuse it. The threads stretch during installation. A properly torqued U-bolt is designed to be a one-time fastener — reusing it compromises thread engagement and reduces your ability to reach specified clamp load on the next installation.

Where U-Bolts Show Up

Leaf spring axle clamping is the most familiar application, but U-bolts are everywhere in fleet and industrial maintenance:

• Pipe and conduit support on mechanical, plumbing, and HVAC systems — round bend U-bolts sized to the pipe OD
• Trailer axle assemblies — both spring-ride and torsion-axle trailers use U-bolts for axle-to-spring clamping
• Exhaust system mounting — smaller diameter U-bolts clamp exhaust pipes to hangers and flanges
• Antenna and equipment masts — round bend U-bolts secure mounts to structural tubing
• Agricultural equipment — drawbars, implement hitches, and frame crossmembers

The commonality across all these applications is that a U-bolt is doing structural clamping work, and dimensional accuracy plus installation practice determine whether it holds.

Keeping the Right Ones on the Shelf

The difficulty with U-bolts in a fleet or maintenance shop is that they span a wide range of sizes, and the specific size depends on the exact vehicle or equipment. Running out of the right leaf spring U-bolt when a truck is on the lift is a real productivity problem — and because U-bolts are single-use, you can't take one out of a running truck to complete a repair.

Building a basic U-bolt assortment for your most common equipment specs, and storing them in clearly labeled bins, solves the mid-job scramble. At NutsandBolts.com, we offer free 3-hour fastener organization sessions in Massachusetts, Rhode Island, and Connecticut for B2B customers — it's a good opportunity to inventory your current stock, identify the sizes you burn through most, and set up a system that makes reordering straightforward. Reach out via our contact page if that's something worth a conversation.

U-bolts are a fastener that gets underestimated until one fails. Getting the four dimensions right, matching the bend style to the application, torquing with a real torque wrench, and coming back for the re-torque — those four steps cover most of the ways this fastener gets installed incorrectly. The hardware is simple. The discipline around it is what keeps the truck on the road.
