The Cotter Pin You Reused Is Why That Clevis Walked Off

A tech finishes a trailer axle bearing repack, slides the castle nut back on, and reaches for the cotter pin that came out an hour earlier. The tines still look straight enough. The hole still lines up. The job is already running long. The pin goes back in, gets a quick bend, and the wheel goes on the ground.

Three weeks later the same trailer is in the bay with a loose spindle nut and a greasy pin that has half-worked itself open. Nothing exotic failed. The fastener that was supposed to stop rotation already spent its best bend on the first install.

That pattern shows up constantly in fleet, agricultural, and outdoor power shops. Cotter pins are cheap, simple, and easy to treat as reusable wire. On anything that keeps a castle nut, clevis, hitch pin, or linkage from walking, they are a one-time safety lock, not a reusable clip.

What a Cotter Pin Actually Does

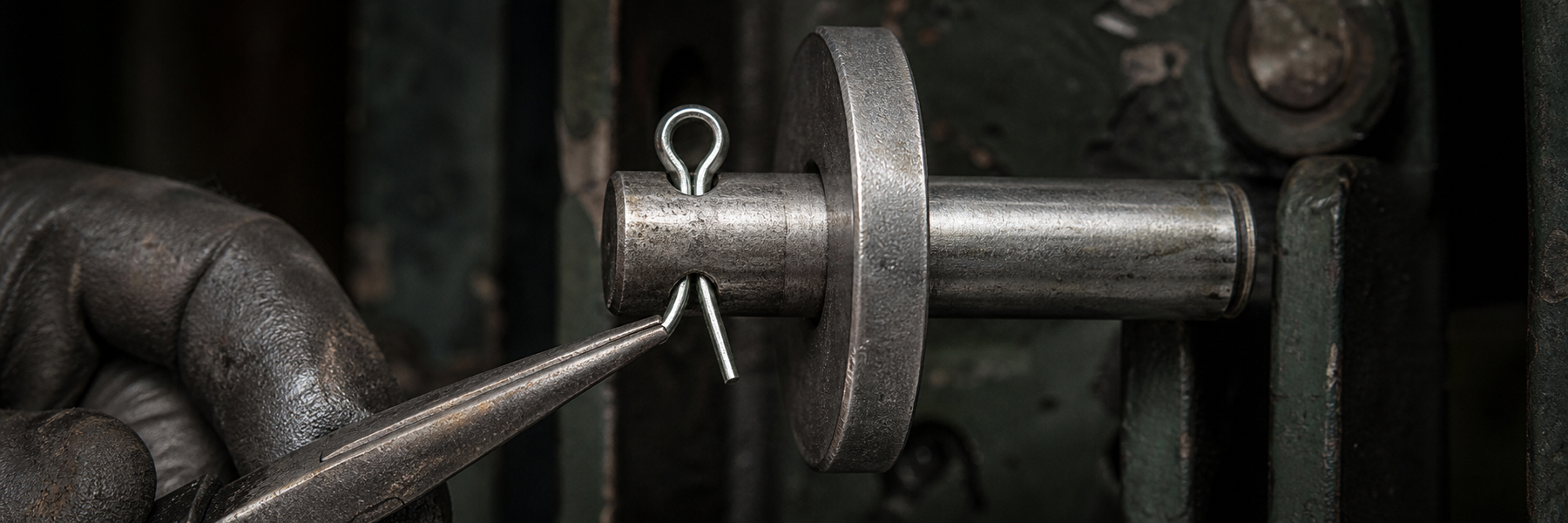

A cotter pin (split pin) is a positive mechanical stop. You push it through a drilled hole in a bolt, clevis pin, or shaft, then bend one or both tines so the assembly cannot back out under vibration or load.

It does not create clamp load. That is the bolt or nut's job. The cotter pin's only job is to keep a castle nut from turning, keep a clevis pin from sliding free, or keep a linkage from losing its pin under shock and vibration. When that stop fails, the joint can loosen long before the primary fastener "breaks."

You will see cotter pins on:

• Trailer and vehicle wheel bearing castle nuts
• Hitch pins, brake actuator clevises, and suspension links
• Agricultural implement hitch and linkage points
• Outdoor power equipment (mowers, tillers, snow blowers)
• Shackles and clevis hardware where a pin must stay captured

If the connection is safety-critical or high-vibration, treat the pin as part of the retention system, not as packaging wire.

Why Reuse Is the Wrong Default

Bending a cotter pin cold-works the tines. Straightening it for reuse puts stress into metal that already took a permanent set. On the next install the pin can feel "soft," crack at the bend, or fail to hold a full open against vibration.

Shop practice on critical service is consistent for a reason: replace the cotter pin every time you remove it on axles, kingpins, hitch hardware, and anything that can put a wheel or implement on the ground if it walks free. Hair pin cotters and some clip-style retainers can be reusable when the design intends it. A bent split pin on a castle nut is not that design.

We see the opposite habit on rushed jobs: the old pin is still in the tray, the assortment drawer is empty on that diameter, and the tech reuses what came out. The fix is inventory, not clever pin straightening.

Diameter First, Then Length

Wrong diameter is the most common selection error we hear from shops.

Diameter must match the hole. Too small and the pin can rattle, shear more easily, or fail to fill the castle-nut slot properly. Too large and it will not enter the hole without force that damages the pin or the bolt.

Length is measured for the application, not by habit. After the pin is fully seated, you need enough tine past the far side of the nut or clevis to bend a secure lock without leaving a long whip that can snag or fatigue. Extended-prong pins are oriented so the head sits tangent to the bolt or pin and the long tine bends cleanly; short leftover prongs that barely clear the far face are a weak install.

Practical shop rule:

1. Match diameter to the drilled hole (and to the castle nut slot width).
2. Choose a length that leaves bendable tine on the exit side without excess snag length.
3. If you are between sizes, do not "make it work" with a smaller pin and a harder bend. Get the right diameter.

ASME B18.8.1 covers standard inch-series cotter pin dimensions. Stocking the common diameters removes the guesswork mid-job.

Standard Split Pins vs Hair Pins and Hammer Locks

Not every "cotter" in the tray is the same fastener.

Standard split cotter pins are the workhorse for castle nuts and drilled clevis pins. One-time bend. Best default for critical retention.

Hair pin cotters (hitch pin clips) spring into place and often come out without destroying the pin. They shine on hitch pins and frequently serviced linkages where speed matters and the design expects a clip, not a bent split pin. They are not a free substitute for a castle-nut cotter on a wheel bearing.

Hammer-lock / clinch-style cotters are built for a more permanent set. Use them where the OEM or the application calls for that style, not as a random upgrade from a standard pin.

Pick the style the joint was designed for. Swapping a hair pin onto a castle nut because it is faster is the same class of mistake as putting a worm-gear clamp where the OEM used a spring clamp: it can look fine until vibration proves otherwise.

Material and Finish for Real Shops

Most general repair and fleet work runs low carbon steel, zinc plated cotter pins. That matches ASME B18.8.1 hardware and holds up in dry-to-moderate environments.

Step up when the environment is harder:

• Stainless for salt, marine splash, continuous wet-dry cycles, and chemical washdown
• Avoid assuming "any shiny pin" is stainless; check the callout before you put it on a coastal or plow truck chassis

Cotter pins are not the place to save pennies on a safety retention joint. The cost of a fresh pin is trivial next to a wheel-off event or a lost implement pin on the road.

What to Stock So the Job Does Not Stop

The failure mode we care about is not exotic metallurgy. It is an empty bin on the diameter you need at 4:30 p.m.

A practical cotter inventory for fleet, ag, and OPE shops looks like this:

• Standard zinc split pins across the common diameters (1/16", 3/32", 1/8", 5/32", 3/16", 1/4") with multiple lengths per diameter
• A labeled drawer or kit so techs stop digging through bulk bags
• Hair pin cotters in the sizes your hitch and linkage work actually uses
• A clear rule posted at the bench: critical castle-nut and clevis jobs get a new split pin

NutsandBolts.com stocks individual cotter pins and organized assortments so the right diameter is already in the drawer. Our 980 Piece Cotter Pin Assortment Starter Kit covers six diameters in a heavy-duty labeled metal drawer (about 15 lb of pins, ASME B18.8.1 zinc hardware). For hitch-style work, the 120 Piece Hairpin Cotter Assortment Starter Kit keeps clip-style retainers separate from split pins so the two jobs do not get mixed in the same bin.

If your shop keeps "borrowing" the last 1/8" pin off a half-empty bag, that is a stocking problem. For B2B customers in MA, RI, and CT, our free 3-hour fastener organization sessions are built to fix exactly that: right sizes labeled, restock levels set, and techs not improvising retention hardware.

Bottom Line

A cotter pin is a cheap part with an expensive job. Match diameter to the hole, pick a length you can bend correctly, use the style the joint expects, and on critical axles, hitch, and clevis work, install a new split pin every time.

If you want the inventory side handled without chasing loose bulk bags, start with a full diameter assortment and keep hair pins in their own kit. Browse cotter hardware and assortments at NutsandBolts.com, or contact us if you need help building a shop-ready retention drawer.
