The Washer That Walked Off the Fender: What a SEMS Screw Actually Is
A SEMS screw is a screw or bolt with a washer already on it, permanently. The washer spins freely, but it cannot slide off the thread. OEM body work uses that pair as one part. A loose washer from the hardware drawer is not the same job.
Description
A SEMS screw is a screw or captive-washer assembly used on automotive body panels and sheet-metal brackets. This guide shows how to identify one, why shops should not split the pair, and which sizes to stock.
The Washer That Walked Off the Fender: What a SEMS Screw Actually Is

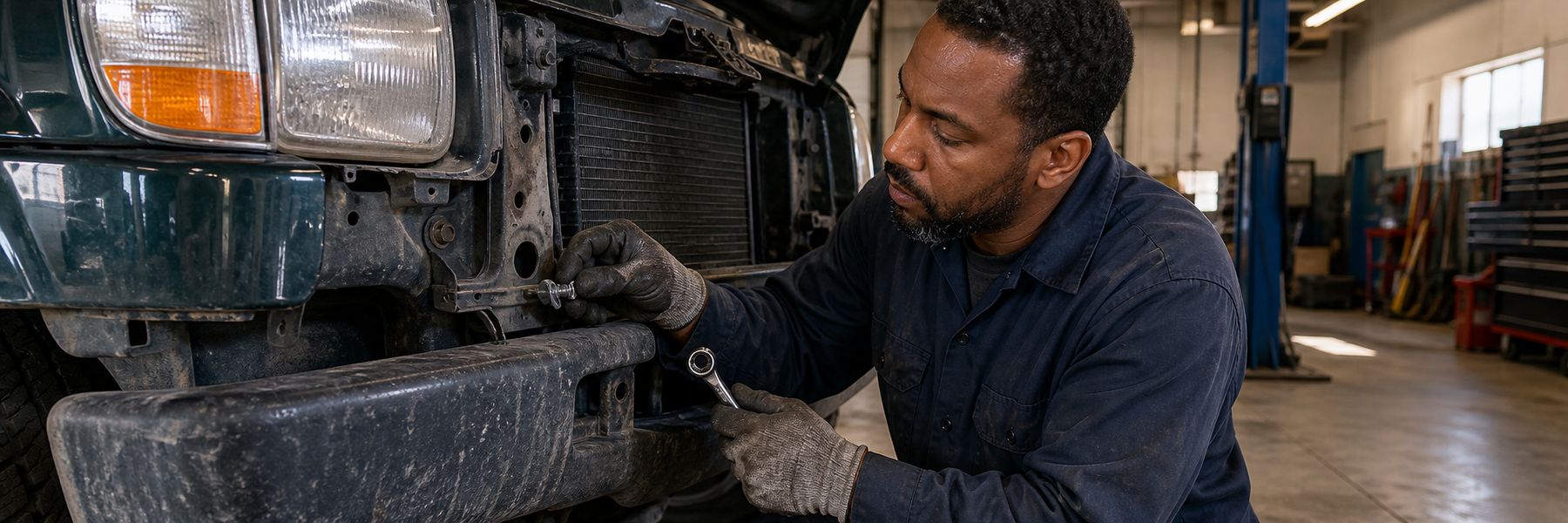

A tech pulls a fender liner on a work truck, bags three hex bolts, and one washer disappears into the gravel. He grabs a flat washer from the drawer, starts the bolt, and the liner sits proud. Next week the liner buzzes. The OEM fastener was never a bolt plus a random washer. It was a SEMS screw: one assembly, washer captured under the head.
Thousands of people look for SEMS screws every day. Do they know what they do?
What a SEMS screw is
ITW describes a machine SEMS as a machine screw with a permanently attached, “captured” washer. ASME B18.13 is the inch-series standard for those screw-and-washer assemblies. Metric parts sit under ASME B18.13.1M.
The washer goes on before the last thread is rolled or the point is formed, so the major diameter keeps it from falling off. It still rotates. That is the whole point: bearing area stays under the head, and the tech never fishes a washer out of a fender well.
Shops also hear captive washer, combi bolt, or “screw w/washer.” Same family. A hex washer head (washer formed as part of the head) is not a SEMS. A flange nut is not a SEMS either. SEMS is the screw side of the pair.
Why the OEM used one
Body panels, splash shields, radiator supports, and bumper brackets are thin steel or plastic. A small hex head can pull through or scar the paint. The captured washer spreads the load. Because the washer is already on the fastener, line workers never skip it, and service techs do not drop it onto a running belt.
We see the failure when someone “makes do”:
- A loose washer that is too small, so the hole still elongates.
- A lock washer stacked under a SEMS washer, so clamp load and height change.
- A tapping SEMS replaced with a machine screw into a stripped clip.
The washer is not decoration. It is part of the clamp path.
SEMS vs. a screw and a washer from the drawer
| What you have | What you think you have | What actually happens |
|---|---|---|
| OEM hex SEMS, 22 mm washer | “Just a hex bolt” | Liner sits flush; washer cannot fall off |
| Hex bolt + random USS washer | “Close enough” | Stack height and OD are wrong; liner buzzes |
| Hex washer-head tapper | “Same thing, washer is built in” | Bearing face is smaller and does not float |
CDE Fasteners notes that SEMS length is treated as a single stack so tolerances do not pile up between separate parts. Measure length from under the head through the washer stack, the way the catalog calls it, not from the top of the hex.
If the original washer OD is 7/8 in on a 5/16 SEMS, do not “upgrade” to a tiny #10 washer because that is what is open. Match OD, finish, point, and thread.
How to read the part in your hand
- Look under the head. A free-spinning washer that will not slide off the thread is a SEMS.
- Check the point. Machine thread into a nut or U-nut. Type A/AB or CA tapper into sheet metal.
- Measure thread (inch or metric), length under the head, washer OD, and wrench size across the flats.
- Match finish to the rest of the panel hardware: black phosphate on a lot of body work, yellow zinc on some Class 9.8 body bolts, polyseal where OEM used a sealed head.
Common fleet sizes we sell as singles:
- 5/16-18 x 1 hex head SEMS with a 7/8 in washer
- M6.3 x 20 mm hex head SEMS tapping screw, black phosphate
- M4.2 x 20 mm hex head SEMS tapping screw, phosphate
More body hardware lives in the automotive body bolts collection.
What we tell shops to stock
Do not buy SEMS one broken fender at a time. A small labeled drawer of the five sizes you actually remove (two inch, three metric) pays for itself the first week you stop sending someone to the parts store for “that bolt with the washer that won’t come off.”
If the bin is a mess, that is a storage problem, not a fastener mystery. We still offer a free 3-hour fastener organization session for shops in Massachusetts, Rhode Island, and Connecticut. Contact us if you want that on the calendar.
When not to use a SEMS
SEMS is the wrong call for structural joints, suspension, wheels, or anything that needs a specified grade marking and a torque-angle procedure. It is also the wrong call if the OEM used a flange-head bolt with no separate washer, or a plastic push retainer. Copy the joint you removed.
A SEMS also does not fix a blown-out sheet-metal hole. Repair the hole or replace the clip nut, then put the correct SEMS back.
Bottom line
If the washer will not come off the screw, stop treating it as two parts. Order the SEMS. Match thread, length, washer OD, point, and finish. Keep a handful of the sizes your fleet actually uses so the next liner job does not end with a random washer in gravel.
Need a size that is not on the shelf? Send a photo of the head, washer, and thread to the team. We identify SEMS every week.
