Lag Bolt vs. Wood Screw: The Call Every Builder Gets Wrong at Least Once

You're halfway through framing a deck ledger board. The board that connects your deck structure to the house. And the only fasteners on the truck are a box of #10 construction screws. They're structural-rated. The packaging says so. Do they work here, or do you need lag bolts?

This exact question gets answered wrong every season, usually not because the builder didn't know the difference between the two fasteners, but because the answer sits in a middle ground that neither "just use lags" nor "screws are fine" covers cleanly.

Here's how to read the situation correctly before the fastener goes in.

What a Lag Bolt Actually Is

A lag bolt. Technically a lag screw, though the terms are used interchangeably on most job sites. Is a heavy-duty wood fastener with a hex head and a coarse, sharp-threaded shank. Diameters run from 1/4" up to 3/4" and beyond, and common stock lengths range from 1" to 6".

The distinguishing feature: you cannot drive a lag bolt without a pilot hole. Skip it and you'll split the wood, strip the head, or snap the shank before the fastener is fully seated. The pilot hole is part of how the fastener works. The threads bite into the surrounding wood, generating the clamping force that holds the connection.

The hex head matters too. Lag bolts drive with a wrench or impact driver, not a screwdriver bit. That geometry is engineered for high torque. Exactly what you need when you're pulling two heavy timber members tight under sustained load.

What People Mean When They Say "Wood Screw"

Here's where most comparisons go sideways: "wood screw" is not one thing.

A standard #8 or #10 construction screw is a light-duty fastener. It drives fast, holds well in non-structural applications, and costs almost nothing per fastener. It's the right tool for fence boards, sheathing panels, trim, and interior framing.

A structural screw is a different animal. Structural screws. Sometimes called structural wood screws or timber screws. Are engineered and ICC-evaluated for load-bearing connections. Many carry the same code approvals as lag bolts for specific applications. Most drive without a pilot hole, saving real time on a framing crew. FastenMaster's HeadLOK line, for example, is explicitly designed to replace 3/8" lag screws in deck framing without pre-drilling.

When someone asks "lag bolt vs. wood screw," they're usually really asking one of two separate questions: lag bolt vs. structural screw for load-bearing work, or lag bolt vs. standard screw for light joinery. The answer to each is completely different.

The Application That Decides It

Lag bolts belong wherever a code-specified, large-diameter fastener is required for the connection:

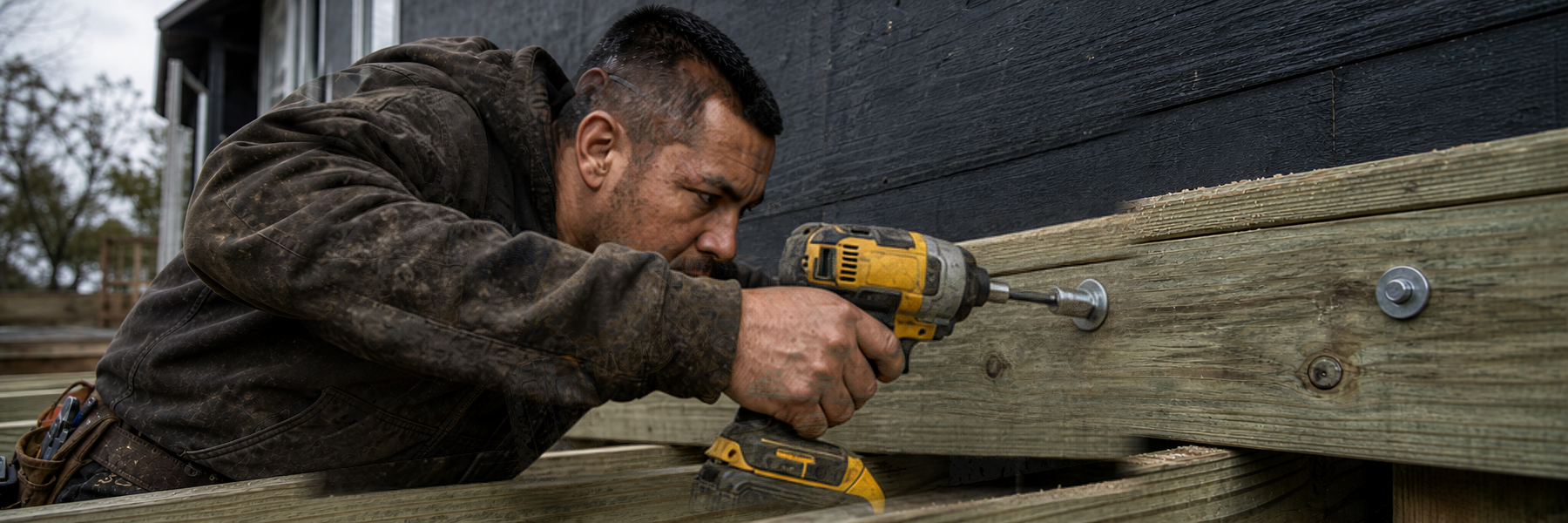

Ledger board to rim joist. Most IRC-compliant deck builds specify lag bolts or equivalent-rated structural screws for ledger attachment, at specific spacing based on joist span and tributary load. This is a structural connection. A standard construction screw does not belong here.

Post-to-beam connections. When vertical load transfers through timber, lag bolts create the clamping force and shear resistance needed.

Heavy timber framing. Pergolas, barn beams, ridge boards, and any application where you need deep thread engagement into solid material.

Lag shield anchors. When connecting a wood structure to a concrete foundation element using an anchor sleeve, a lag bolt threads into the shield to complete the connection.

Standard wood screws don't belong in any of those applications. A #10 screw has roughly one-third the diameter of a 3/8" lag bolt. Shear strength scales aggressively with diameter. And a 1/2" lag bolt at 3.0" embedment provides roughly 624 lb of illustrative shear capacity in typical framing lumber, per guidance from the American Wood Council design references. A standard construction screw at similar embedment is not in the same category.

For structural connections, always verify sizing against the AWC Connection Calculator and your local building code. Load, species, spacing, and edge distances all affect design values.

Pilot Holes: The Step Most People Rush

Lag bolts require a pilot hole, and the correct diameter depends on both the lag size and the wood species. Too small and you risk splitting the wood or snapping the shank. Too large and the threads have nothing to bite.

A general pilot hole chart for common construction applications:

Softer species (spruce, pine) tolerate a slightly smaller pilot. Harder species (oak, hard maple) need a larger one to prevent splitting at the head. Drill at least as deep as the threaded embedment you're targeting, and clear the chips before driving.

Driving without a pilot hole into green pressure-treated lumber is one of the most reliable ways to either split the member or snap the lag head. And neither failure announces itself immediately.

The Coating Decision for Outdoor Work

This matters as much as the size selection, and it gets skipped regularly.

Zinc-plated lag bolts are appropriate for interior or fully protected applications. For exterior decks, fences, pergolas, or anything that touches modern pressure-treated lumber, you need hot-dip galvanized or stainless. The preservatives in ACQ and CA-treated lumber are chemically more aggressive than older CCA material, and they'll corrode zinc-plated fasteners faster than expected. Especially in humid climates or near grade.

For coastal or marine applications, 316 stainless is the correct spec. 18-8 stainless handles most exterior environments well but breaks down under sustained saltwater exposure.

At NutsandBolts.com, we stock lag bolts in zinc-plated, galvanized, and stainless steel across the most common diameters and lengths. If you're sourcing lag bolts for a specific project and want to confirm the right coating for the environment and treatment type, reach out to us directly. We're happy to work through it.

The Recommendation

For structural connections. Deck ledger attachment, post-to-beam, heavy timber framing, lag shield anchor installations. Use lag bolts or ICC-evaluated structural screws sized and detailed to code for the connection. Do not substitute standard construction screws, regardless of what the packaging says about general structural use.

For light-duty joinery, interior framing, trim, and similar non-structural work, standard wood screws are appropriate and efficient.

If driving without pre-drilling matters for your project's pace, structural screws with equivalent ICC approval are a legitimate alternative to lags. As long as the product is actually rated for that specific connection. Check the ICC evaluation report, not just the box.

The wrong fastener here doesn't fail visibly or immediately. It holds until the load conditions change, the season cycles a few times, or someone stands on the wrong part of the deck.
