The Plow Bolt That Sheared on the First Storm: How to Measure, Grade, and Stock the Right One

#TLDR A plow bolt is a countersunk, square-neck fastener built so the head sits flush in a cutting edge while the neck locks against a square hole. Measure flat-head length from the top of the head to the tip; measure dome-head length from the largest diameter of the head (not the dome crown) to the tip. For snow plow and scraper blades, match the hole style, use Grade 8 (or higher specialty 170 ksi scraper bolts) with Grade 8 lock nuts, torque to the plow maker’s spec, and replace hardware with every edge change.

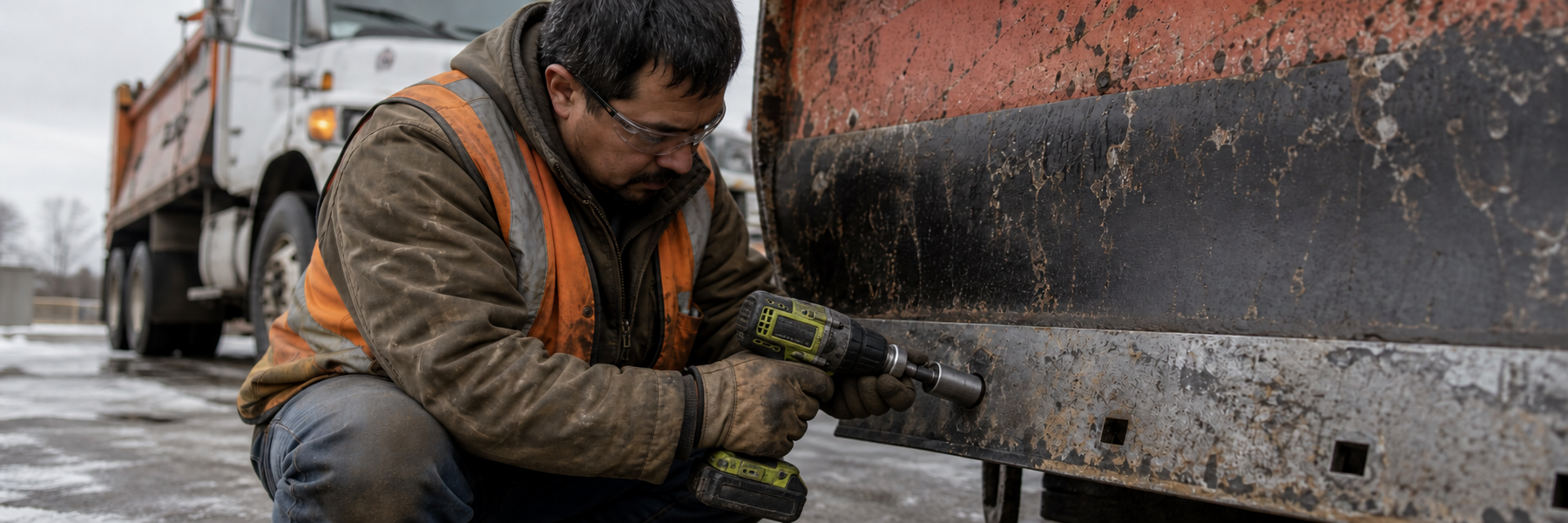

The first hard freeze of the season is when you find out whether last spring’s “temporary” hardware was temporary. A municipal plow truck rolls out at 3 a.m. The cutting edge is two seasons old. Half the bolts are Grade 5 carriage bolts someone grabbed from the open bin because the square holes looked close enough. By the second pass on a salted arterial, two heads have pulled through, the edge starts to chatter, and the rest of the shift is spent on the shoulder with a torch and a parts runner.

We see that pattern every winter with fleet and contractor shops across New England. The fastener is not mysterious. The mistakes are: treating a plow bolt like a carriage bolt, measuring length the wrong way for the head style, and mixing grades so the nut mushrooms before the bolt ever reaches clamp load.

Here is how plow bolts actually work, how to measure them so the next order lands right the first time, and what we stock at NutsandBolts.com when shops stop improvising on cutting edges.

What a Plow Bolt Is (And Why the Head Sits Flush)

A plow bolt is a heavy-duty threaded fastener with a low-profile countersunk head and a square neck under the head. The square neck seats in a matching square hole so the bolt cannot spin while you tighten the nut from the back side of the moldboard. The head is meant to sit flush (or nearly flush) with the wear surface so the blade can scrape without the fastener hanging proud and grinding on pavement.

That geometry is why plow bolts show up wherever a replaceable wear edge takes abuse:

• Snow plow and underbody scraper blades
• Dozer and grader cutting edges
• Agricultural moldboards, shares, and tines
• Mining and earthmoving wear parts
• Shaker screens and other high-abrasion plates

Industry practice and standards groups describe multiple head families (often numbered, with #3 among the most common for modern ground-engagement hardware). On our floor, the workhorse call is a #3 dome-head scraper blade / plow bolt in Grade 8, plain finish, for bulldozer and snowplow edges. See Earnest Machine’s overview of head types and measurement and ASME B18.9 style conventions when you need a formal cross-reference.

Plow Bolt vs. Carriage Bolt

Both use a square neck. That is where the similarity ends.

Winter Equipment’s guidance on snow plow blade hardware is blunt: wrong hardware costs production time and blade life. A carriage bolt head that sticks proud will wear, snag, and change how the edge rides. A soft grade will stretch or shear when the blade hits a frozen ridge or manhole ring.

If the hole is square and the surface is a cutting edge, you want a plow bolt, not whatever is left in the carriage bolt drawer.

How to Measure Plow Bolts Without Ordering the Wrong Length

Diameter is straightforward: match the nominal size of the bolt to the hole (common snow plow sizes include 5/8"-11 and larger scraper sizes up through 1" and above). Length is where orders go sideways.

Flat-head plow bolts

Measure from the top of the head straight through to the tip of the threads. The head height is part of the length. That matches how flat countersunk plow bolts are specified in field practice and vendor dimension guides such as AFT Fasteners’ plow bolt FAQ.

Dome-head plow bolts

Measure from the largest diameter of the head (the bearing / countersink plane) to the tip. Do not include the protruding dome crown in the length. If you measure from the top of the dome the way you would a hex bolt, you will order short and the nut will bottom before the head seats.

Practical shop check

1. Pull a bolt that already fits and marks the moldboard correctly.
2. Confirm head style: flat vs. #3 dome / scraper style.
3. Confirm neck seats fully in the square hole without spinning.
4. Measure length with the rule above, then add only what the stack-up needs (edge thickness + moldboard + washer/nut engagement). Do not “add a half inch for luck” without checking nut engagement and thread stick-out.

We document the same flat-vs-dome length rule on our plow bolts application page because it is the number-one phone call when a box of “the same size as last year” will not seat.

Grade, Nuts, and Torque: Where Edges Actually Fail

Use Grade 8 (or the scraper spec you actually bought)

For snow plow and scraper edges, Grade 8 is the baseline we recommend for most municipal and contractor setups. Grade 8 is quenched and tempered medium carbon alloy steel with a minimum tensile strength on the order of 150,000 psi for standard SAE Grade 8 fasteners. Many scraper / #3 dome head plow bolts are sold to even higher tensile targets (for example, our Grade 8 #3 dome scraper bolts are specified around 170,000 psi tensile with elevated proof and yield values on the product data). Do not mix a soft nut onto a hard bolt and expect the joint to behave.

Winter Equipment also flags a shop habit that quietly destroys moldboards: lock washers under the nut. Hardened lock washers can gouge the moldboard, create metal shards that crush in service, and leave the nut loose even when it “felt tight” on the impact wrench. Prefer Grade 8 lock nuts (or double-nut Grade 8 hex nuts if that is what the OEM allows). Stover-style lock nuts are typically single-use; plan new hardware with every edge change.

Torque is a window, not a contest

Over-torque pops heads. Under-torque lets the edge walk, frets the holes oval, then shears the bolts. Use the plow or blade manufacturer’s torque chart, a calibrated wrench (not a guess on an impact), and re-check after the first several hours of service when a new edge beds in. Cross-threading feels like sudden resistance in the first turns; stop, back off, and restart rather than forcing the nut.

Finish and environment

Plain finish Grade 8 is common on high-strength scraper bolts because heavy coatings can affect fit and heat treatment appearance. Salt, brine, and road grit still attack the joint. Inspect for rust, rounded heads, stretched shanks, and loose nuts on a fixed PM schedule. Replace damaged bolts immediately; one bad fastener can freeload the neighbors until the whole edge tears off.

What We Recommend Shops Stock Before the Season

When a fleet manager asks us how to stop emergency runs at 2 a.m., the answer is boring and effective:

1. Match the hole and head. Confirm #3 dome / flat / specialty head against the edge punch pattern before you buy by the hundred.
2. Standardize on Grade 8 plow bolts and Grade 8 lock nuts for cutting edges. Keep carriage bolts out of that bin.
3. Label the bin by diameter × length × head style, not “plow stuff.” 5/8"-11 × 2" #3 dome is not interchangeable with a random 5/8" carriage bolt of similar length.
4. Buy enough for a full edge change plus spares. Hardware is cheaper than a night on the shoulder and a bent moldboard.
5. Treat edge changes as a kit. New edge, new bolts, new lock nuts. Reusing crushed lock nuts is how “tight” becomes “gone” by morning.

Browse current sizes in our plow bolts collection, including Grade 8 #3 dome scraper blade bolts and full-thread shaker screen styles such as the 5/8-11 × 3" Grade 8 shaker screen plow bolt.

If your shop is drowning in mixed specialty fasteners (plow bolts next to random Grade 5 leftovers), we can help. NutsandBolts.com builds labeled assortments and, for B2B customers in Massachusetts, Rhode Island, and Connecticut, offers a free 3-hour on-site fastener organization session so the right grade is in the right drawer when the storm board lights up. Start at nutsandbolts.com or our contact page.

For related selection context, see our guides on bolt grades and specialty bolts that stop a shop cold.

Bottom Line

Plow bolts earn their name on wear edges: flush head, square neck, high strength, measured correctly for flat vs. dome. Carriage bolts, soft grades, lock washers under the nut, and “close enough” length measurements are how a cutting edge fails on the first real storm. Spec the head and hole, order Grade 8 hardware with matching lock nuts, torque to the OEM window, and replace the set when you change the edge.

That is the difference between a quiet night of plowing and a torch job at mile marker 12.
