What Is a Shoulder Bolt — and When Should You Actually Use One?

Picture this: you're three weeks into a conveyor repair. The pivot point you rebuilt keeps wearing through — same spot, same way, every time. You've tried heavier washers. You've tried thread-locking compound. The bearing surface keeps chewing itself up because there's nothing controlling the lateral movement at that joint.

A colleague walks over, looks at it for about thirty seconds, and says: "You need a shoulder bolt there."

That moment is familiar to a lot of maintenance techs and procurement buyers who've spent time around machinery. Shoulder bolts solve a very specific problem — and once you understand what they actually do, you start spotting the places a standard bolt was never the right answer.

What Makes a Shoulder Bolt Different

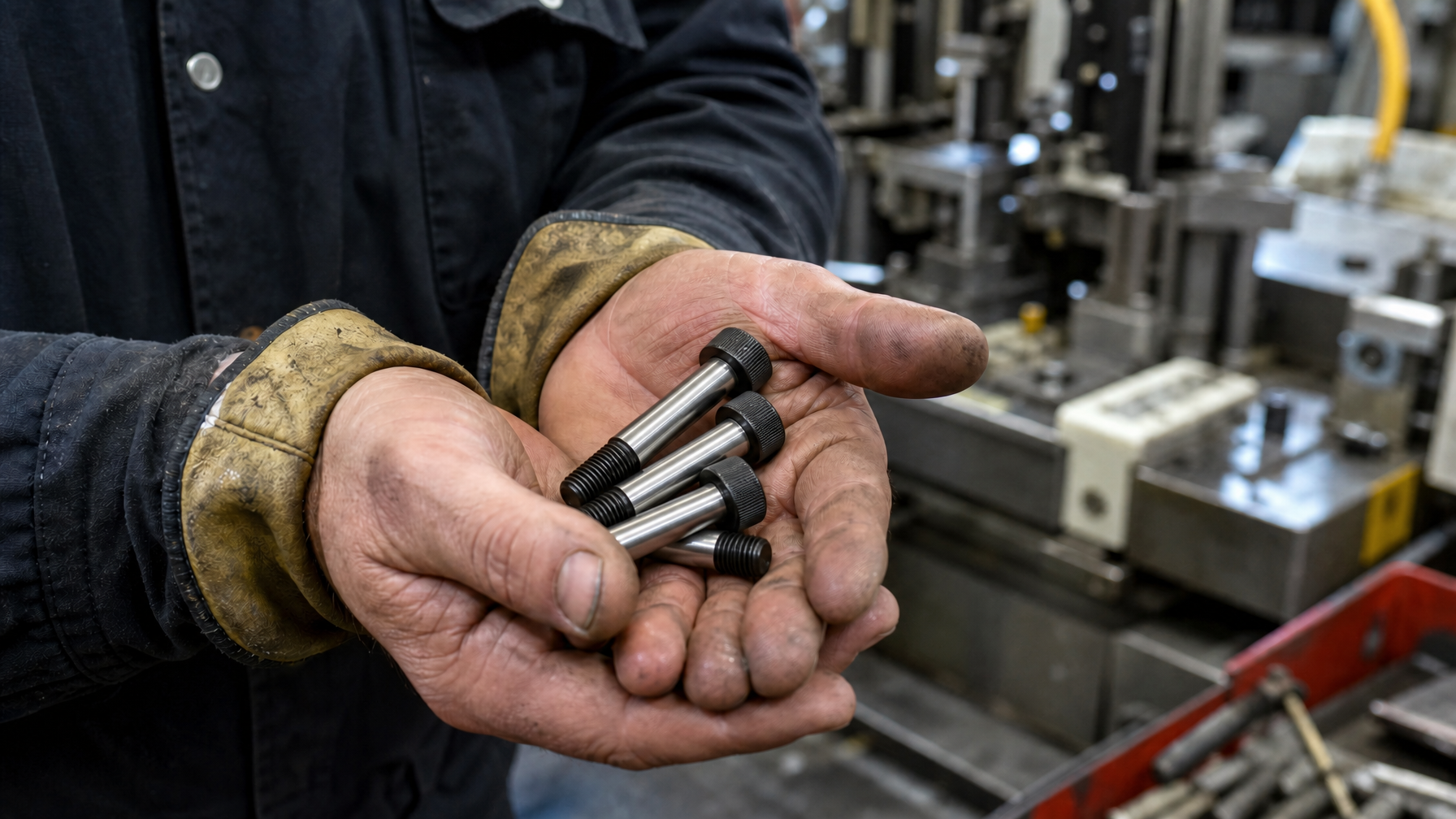

A shoulder bolt (also called a shoulder screw or stripper bolt) has three distinct sections: a socket head, a smooth unthreaded cylindrical shoulder, and a smaller-diameter threaded end.

The critical part is that middle section — the shoulder. It's machined to precise tolerances, typically tighter than the thread diameter. When the bolt is installed and tightened, the shoulder extends proud of the surface. The threaded end draws everything down against the mating surface, but the shoulder itself remains exposed as the working surface.

That's the fundamental difference from a standard hex bolt or cap screw. A regular bolt clamps parts together. A shoulder bolt does that — and also provides a precision pin, shaft, or bearing surface right at the joint.

The Three Jobs a Shoulder Bolt Actually Does

Understanding shoulder bolt applications comes down to recognizing three roles:

1. Pivot Point

This is the most common use. Mechanical linkages, robotic arms, hinged brackets, and cam followers all need a point that rotates cleanly without slop. A shoulder bolt gives you a precision-diameter shaft at that joint. The mating part (a bushing, a bearing, or a directly bored hole) rides on the smooth shoulder, not the threads. That's what prevents wear and maintains positional accuracy over time.

2. Sliding Guide

Some assemblies need controlled linear movement — a component that slides back and forth along a fixed path. Shoulder bolts drop into slotted holes or linear guides, keeping the moving part on-axis while still allowing travel. Die assemblies and stripper plates in stamping operations are a classic example (that's where the name "stripper bolt" comes from).

3. Spacer and Alignment Pin

In assemblies where two components need to be held at a precise distance from each other, the shoulder acts as a built-in standoff. The shoulder length sets the gap; the thread pulls everything together. It's a cleaner solution than adding separate spacers to a standard bolt, and it eliminates one more loose component that can shift or get left out during reassembly.

When to Use a Shoulder Bolt Instead of a Standard Bolt

The question we hear most often: "Can I just use a regular bolt here?"

Sometimes yes. But if any of the following conditions apply, you're looking at a shoulder bolt application:

• The fastener location experiences rotation or oscillation. A standard threaded shank has surface irregularities that accelerate wear on mating parts. The precision shoulder is far better suited for rotational contact.
• Position or spacing accuracy matters. If you're trying to hold a component at a consistent distance from another surface, the shoulder gives you a repeatable, dimensionally controlled reference that threads can't replicate.
• You're replacing a failed pivot that keeps wearing through. If you've replaced the same standard bolt in the same spot multiple times, the bolt is the wrong fastener for that job.
• The assembly is in a stamping die or injection mold. Shoulder bolts are standard in these environments — the precision tolerances are designed for the clearances and loads those applications demand.

How to Read a Shoulder Bolt Spec

Shoulder bolt specifications follow a consistent format, but the dimensions can be confusing until you've seen it a few times.

The key dimensions:

• Shoulder diameter: The diameter of the smooth, working section. This is what your mating hole or bushing is sized to. Common sizes run from 3/16" up to 3/4" in imperial, or M4 through M20 in metric.
• Shoulder length: The length of the unthreaded section. This determines how much of the fastener is exposed as the bearing or guide surface.
• Thread diameter: Always smaller than the shoulder diameter. The threads pull everything down and hold the assembly together, but they're not the load-bearing surface.
• Thread length: The depth of engagement into the tapped hole.

When ordering, always specify shoulder diameter first, then shoulder length. A 3/8" x 1" shoulder bolt has a 3/8" diameter shoulder and a 1" long shoulder — not a 1" overall length.

One practical note: the hole your shoulder rides in should be sized to the shoulder diameter with an appropriate clearance fit. Too tight and it binds; too loose and you've lost the precision benefit.

Material Options and What They Mean for Your Application

Alloy Steel (Black Oxide Finish)

This is the most common shoulder bolt material in industrial and tooling applications. Alloy steel shoulder bolts are typically hardened to Rockwell C38–43, which gives them excellent wear resistance at the shoulder surface. Black oxide provides mild corrosion protection. Use these in shop environments, machinery, and die work where moisture exposure is limited.

Stainless Steel

Stainless shoulder bolts are the right call for food processing equipment, marine environments, outdoor assemblies, or anywhere regular washdown or humidity exposure is a factor. The trade-off is hardness — stainless is softer than alloy steel, so wear life at the shoulder is shorter in high-cycle applications. If you're running a high-speed pivot with stainless, plan to inspect the shoulder clearance at regular intervals.

Getting the Right Shoulder Bolt for Your Job

Shoulder bolts are a specialty fastener — they're not the kind of thing you'll find reliably stocked at a general hardware store, and ordering the wrong dimensions is a common source of downtime when a repair stalls waiting on the correct part.

At NutsandBolts.com, we stock shoulder bolts across a range of shoulder diameters and lengths in both alloy steel and stainless. If you're managing a maintenance operation or stocking a shop, having the common sizes on hand before you need them prevents the scramble when a pivot joint fails mid-shift.

Not sure which size you need, or trying to identify a replacement for a failed fastener? Our team is glad to help. B2B customers in Massachusetts, Rhode Island, and Connecticut can also take advantage of our free 3-hour fastener organization sessions — we'll help you inventory what's on hand, identify the specialty fasteners your operation actually relies on, and build a stocking strategy that keeps repairs moving.

Contact our team to get started, or browse our specialty fastener selection to find the shoulder bolt specs you need.
