Most hose clamp failures aren't from cheap hardware — they're from the wrong type in the wrong place. Here's how fleet techs and maintenance pros choose between worm gear, spring, ear, and T-bolt hose clamps before the hose goes back on.

Which Hose Clamp Should You Actually Use?

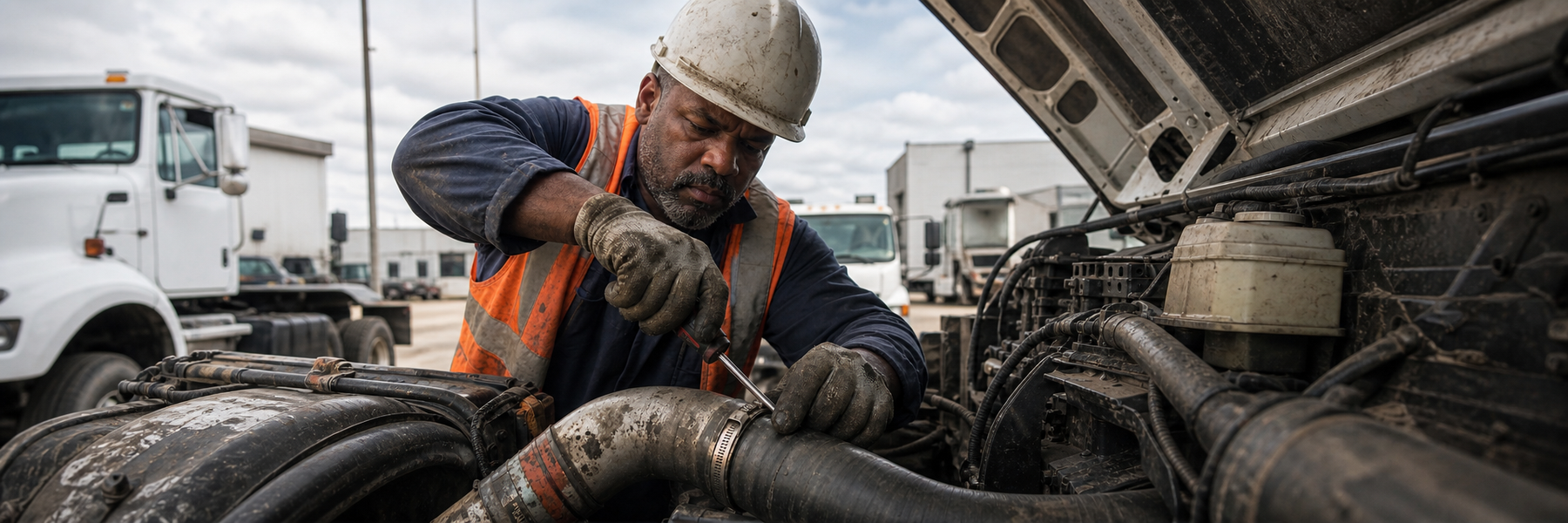

You're halfway through a coolant hose replacement on a delivery truck. The old spring clamp snapped during removal — classic — so you grab a worm gear clamp from the bin because it's what you have. The hose goes on, the job gets done, and three weeks later the same hose is weeping coolant at 60 mph.

The clamp didn't fail because it was low quality. It failed because a high-vibration, constant-temperature-cycling environment needs a constant-tension clamp, not a screw-tightened one that can back off under thermal movement.

Hose clamps look interchangeable. They're not.

Table of Contents

• The Four Types You'll Actually Encounter
• The Material Question: Zinc vs. Stainless
• Getting the Size Right
• What to Stock in a Fleet or Maintenance Shop

The Four Types You'll Actually Encounter {#the-four-types}

Worm Gear Hose Clamps

This is the clamp most people picture. A stainless or zinc-plated steel band with a slotted hex-head screw that tightens through a worm gear mechanism — adjustable, reusable, and available at every hardware store on the planet.

Best for: Fuel lines, coolant hoses on passenger vehicles, intake connections, plumbing fittings, and any application where you need to adjust or remove the clamp repeatedly. The adjustability is the point.

Where they fall short: High-vibration environments. The screw can back off over time when the assembly cycles through heat and movement. If you're clamping a hose on a diesel engine that runs 10 hours a day, a worm gear clamp demands periodic re-torque checks. Most shops skip that step, which is where the leaks start.

Sizing note: The clamp diameter range must overlap the hose's outer diameter with the screw around mid-range — not at the bottom of its range (where you've lost adjustment room) and not at the top (where band overlap is minimal and clamping force drops).

Spring (Constant-Tension) Hose Clamps

Spring clamps look crude — a simple loop of bent steel with two ears you pinch together to open. But that's their advantage. They apply constant radial force as the hose expands and contracts with temperature. No screws to back off, no re-torque required.

Best for: OEM coolant hose connections on cars and light trucks, applications with significant thermal cycling, anywhere you want a set-it-and-forget-it clamp.

The real-world catch: Spring clamps require a specific tool to install in tight spaces, and they're not adjustable — the clamp is sized to match the hose, period. Swapping a spring clamp for a worm gear because it's "easier" is one of the most common maintenance mistakes we see. The OEM used a spring clamp for a reason.

Ear (Oetiker-Style) Clamps

Ear clamps are single-use, crimped clamps. You install them with a special pinching tool that permanently deforms one or two "ears" on the band, creating a fixed, uniform clamp force around the entire hose circumference.

Best for: Fuel injection lines, brake hoses, CV axle boots, hydraulic hose assemblies — anywhere you need a leak-free, permanent seal that resists vibration and can't loosen. They're common on OEM fuel systems for exactly this reason.

The trade-off: Once crimped, they're done. Removal means cutting the clamp off. For maintenance applications where the connection gets serviced regularly, ear clamps are the wrong choice. For a seal you want to forget about for 100,000 miles, they're hard to beat.

T-Bolt Hose Clamps

T-bolt clamps use a heavy-gauge band and a T-shaped bolt through a nut housing to generate substantially higher clamping force than a standard worm gear clamp. They distribute that force uniformly around the full band width.

Best for: Turbo inlet and outlet hoses, intercooler connections, silicone hose couplers on performance and heavy-duty applications, exhaust connections, and any high-pressure hose that needs consistent, high-load clamping force.

If you're working on a diesel truck with a turbocharger, or connecting silicone hoses on a piece of industrial equipment, T-bolt clamps belong on the shortlist. Standard worm gear clamps don't generate enough clamping force for these applications under boost pressure.

The Material Question: Zinc vs. Stainless {#the-material-question}

Most hose clamps come in two material grades: zinc-plated steel and stainless steel (typically 304 series).

Zinc-plated clamps cost less and work fine in dry, protected environments — interior engine bays, indoor industrial equipment, climate-controlled facilities. The zinc coating provides reasonable short-term corrosion protection. What it doesn't survive: road salt, marine environments, repeated wet-dry cycles, and outdoor exposure. The coating scratches, the steel rusts, and eventually the band weakens.

304 stainless costs more and holds up where zinc doesn't. For fleet vehicles that operate in the northeast or coastal environments, stainless clamps on coolant and fuel hoses are a worthwhile spec — a failed clamp on a vehicle 200 miles from the shop is always more expensive than the cost difference at the counter.

One nuance worth knowing: many "stainless" worm gear clamps have a 304 stainless band with a zinc-plated screw. The band holds up, but the screw corrodes first. True all-stainless clamps have a stainless band, housing, and screw. If you're stocking for corrosive environments, check the spec on all three components.

Getting the Size Right {#getting-the-size-right}

Hose clamp sizing lists a diameter range (for example, 5/8" to 1-1/4"). The outer diameter of the hose — after it's seated on the fitting — should fall in the middle third of that range. Too small and you're at the edge of the clamp's adjustment; too large and the band overlap is minimal.

When in doubt, measure the hose OD with calipers before you go to the bin. A clamp that's one size too large is almost as problematic as the wrong type.

What to Stock in a Fleet or Maintenance Shop {#what-to-stock}

For most fleet and industrial maintenance operations, a practical hose clamp inventory looks like this:

• Worm gear clamps in four or five diameter ranges (all-stainless for vehicles that see salt or moisture)
• Spring clamps in the sizes matching your most common OEM coolant connections
• T-bolt clamps for any turbocharged or high-pressure hose work

Ear clamps are typically a job-specific buy rather than a shelf item unless you're doing frequent fuel system or hydraulic work.

If your shop keeps running out of the right clamp at the wrong moment, that's usually a stocking problem, not a supplier problem. The same pattern shows up with bolts, nuts, and fastener hardware — the common sizes are always on the shelf, and the one you actually need is always the one that's gone.

NutsandBolts.com carries hose clamps alongside a full line of fastener hardware for fleet and industrial maintenance. If your shop needs to build out a more complete inventory — from hose clamps to hex bolts to specialty hardware — our free 3-hour fastener organization sessions (available in MA, RI, and CT) are designed for exactly that kind of audit.

The bottom line: Type first, material second, size third. Get those three right and a hose clamp is one of the simplest, most reliable fasteners in the shop. Get them wrong and you'll be back under the hood sooner than you planned.
